With SST-New Generation Star Tester
THROTTLE POSITION SENSORInspection Using SSTs (NGS):

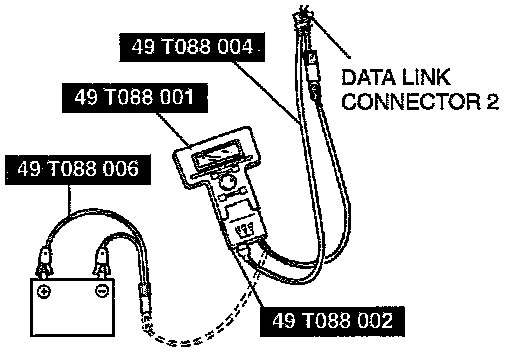

1. Connect the SSTs (NGS) to the data link connector 2 located under the driver side dashboard.
2. Verify that the throttle valve is at the closed throttle position.
3. Turn the ignition switch to ON.

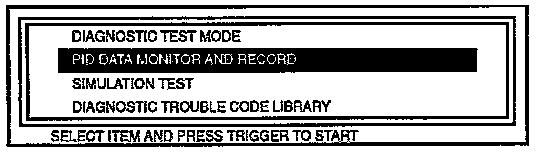

4. Select the "PID/DATA MONITOR AND RECORD" function on the NGS display.
5. Select "TP V" on the NGS display. NGS measures and shows the voltage.
Specification:
- Closed throttle position: 0.1 - 1.1V
- Wide open throttle: 2.8 - 4.5V
- (Verify that the voltage increase is directly proportioned to the throttle valve opening angle.)
6. If not as specified, adjust the throttle position sensor.
