Distributor: Service and Repair

Removal / Installation:

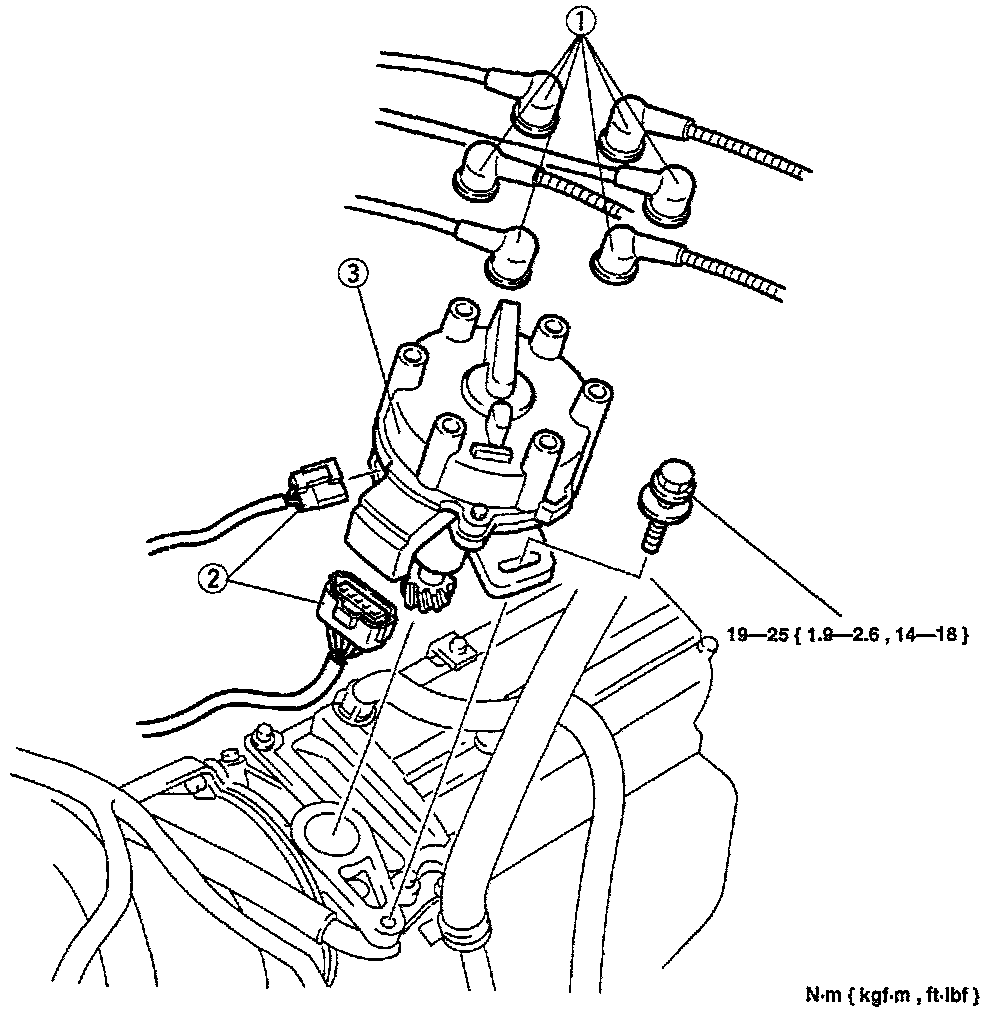

1. Remove in the order shown in the figure below.
2. Install in the reverse order of removal, referring to Installation Note.




1. High-tension leads
2. Connect
3. Distributor

Installation Note:




Verify that the No.1 cylinder is at top dead center and align the distributor matching marks. After installing the distributor, adjust the ignition timing.

Disassembly / Assembly:
1. Disassemble in the order shown in the figure below.
2. Assemble in the reverse order of disassembly.




1. Cap
2. Rotor
3. Distributor set
