Home >> Mazda >> 1997 >> 626 DX L4-2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> Poor Acceleration

Poor Acceleration

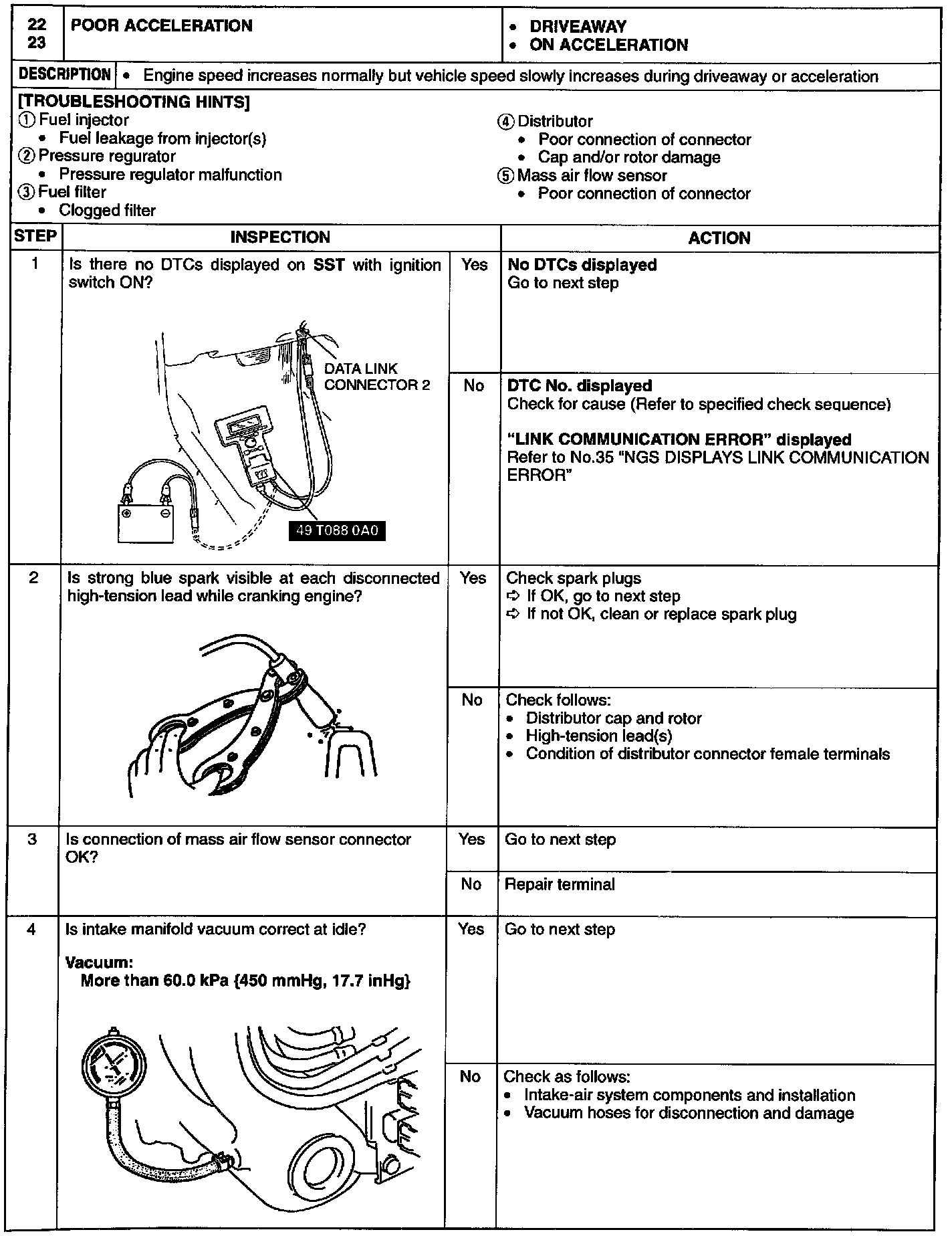

# 22, 23 - Poor Acceleration (1 Of 2):




# 22, 23 - Poor Acceleration (1 Of 2)

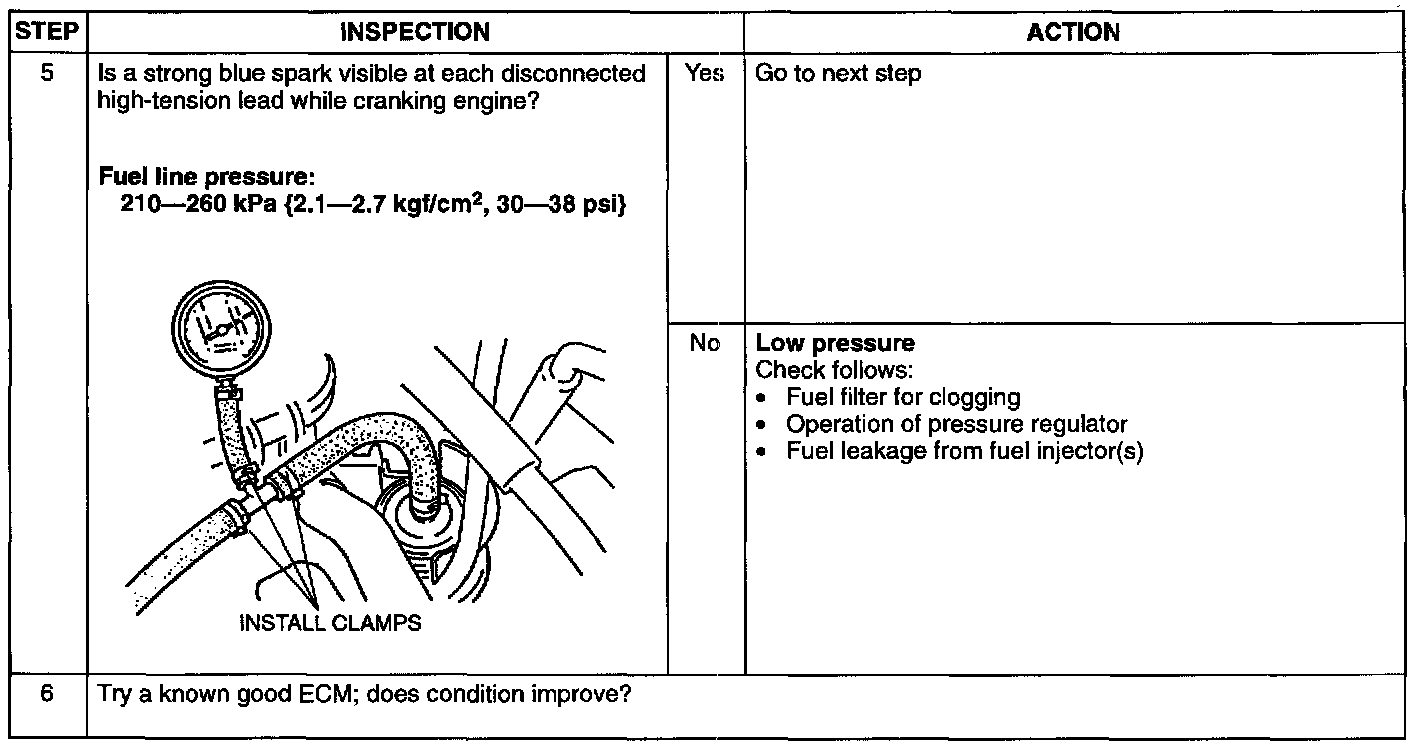

# 22, 23 - Poor Acceleration (2 Of 2):




# 22, 23 - Poor Acceleration (2 Of 2)
