With Automatic Transmission

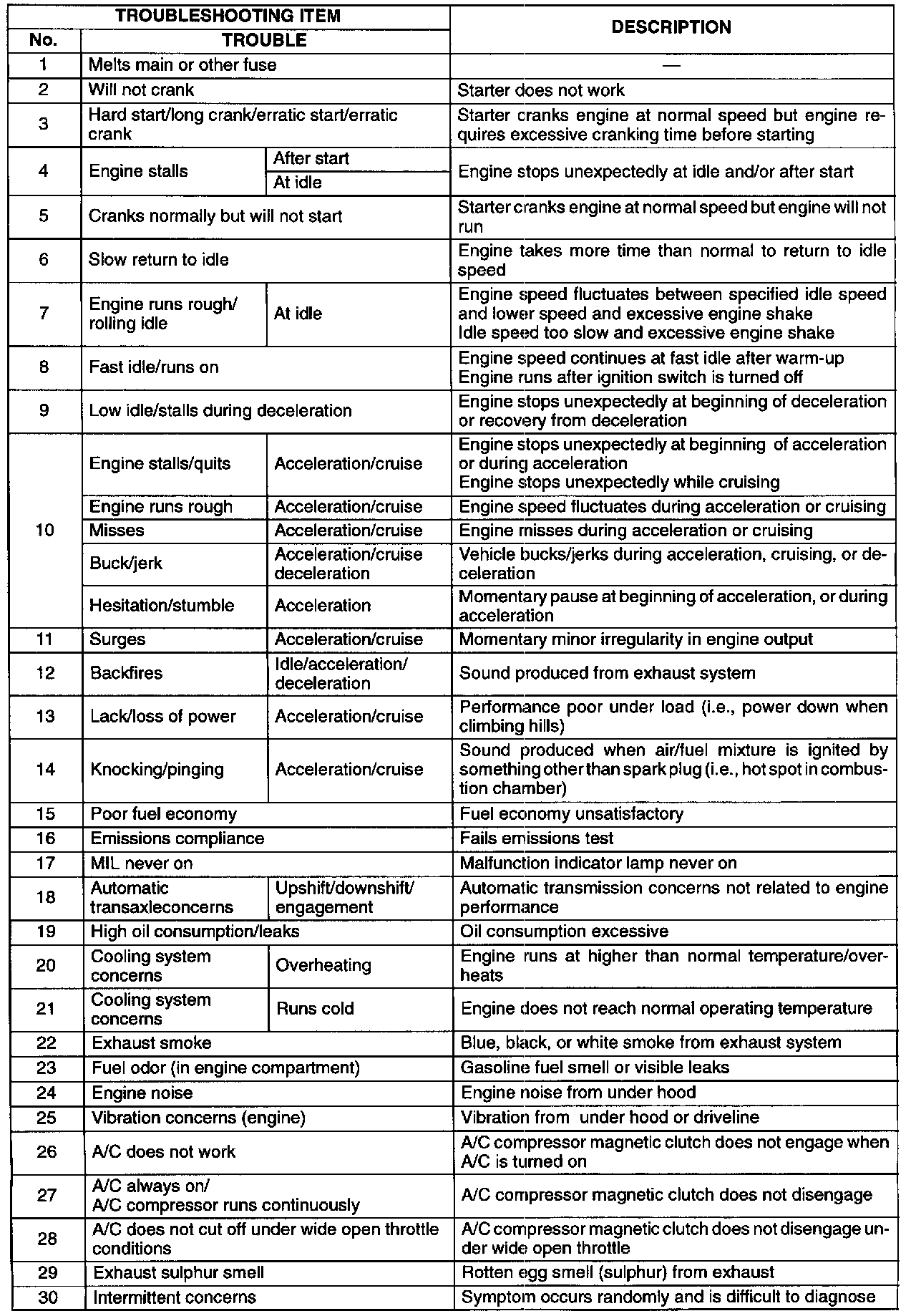

DIAGNOSTIC INDEX

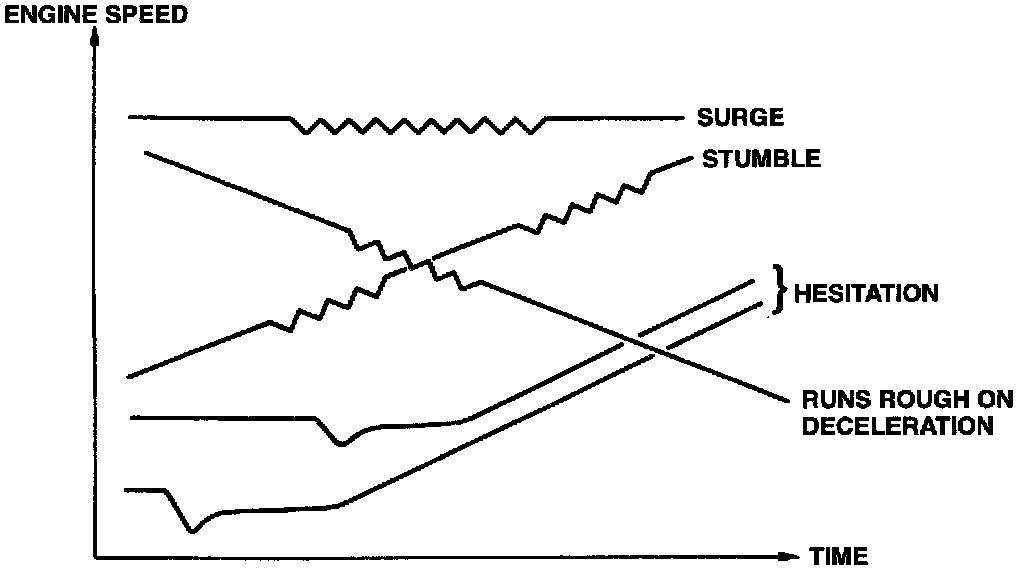

Description of Driveablity Problems
STUMBLE:
Mildly irregular performance during acceleration.

HESITATION:
A dip or flat spot in performance just after the accelerator pedal is depressed.

SURGE:
Continuous irregular performance during cruising.

Fuel Pressure Release and Servicing Fuel System

WARNING: Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel. Fuel in the fuel system is under high pressure when the engine is not running. Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the following "Fuel Pressure Release Procedure:.

Fuel Line Safety Procedures
1. Release the fuel pressure before disconnecting a fuel line.
(1) Start the engine.

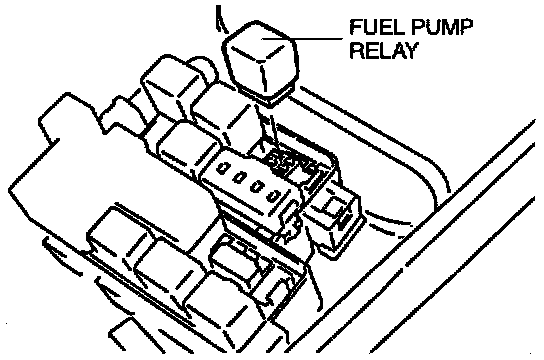

(2) Remove the fuel pump relay.
(3) After the engine stalls, turn the ignition switch to OFF.
(4) Install the fuel pump relay.
2. Avoid leakage.
(1) When disconnecting a fuel line hose, wrap a rag around it to protect against fuel leakage.
(2) Plug the hose after removal.

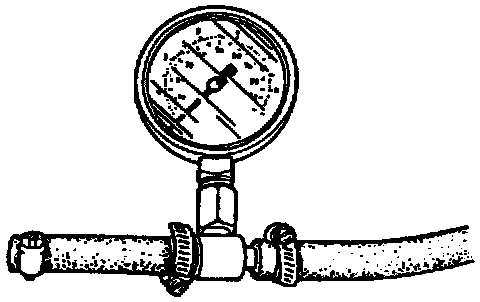

3. Install hose clamps to secure the fuel pressure gauge to the fuel filter and the main hose.
