Air Bag Control Module: Locations

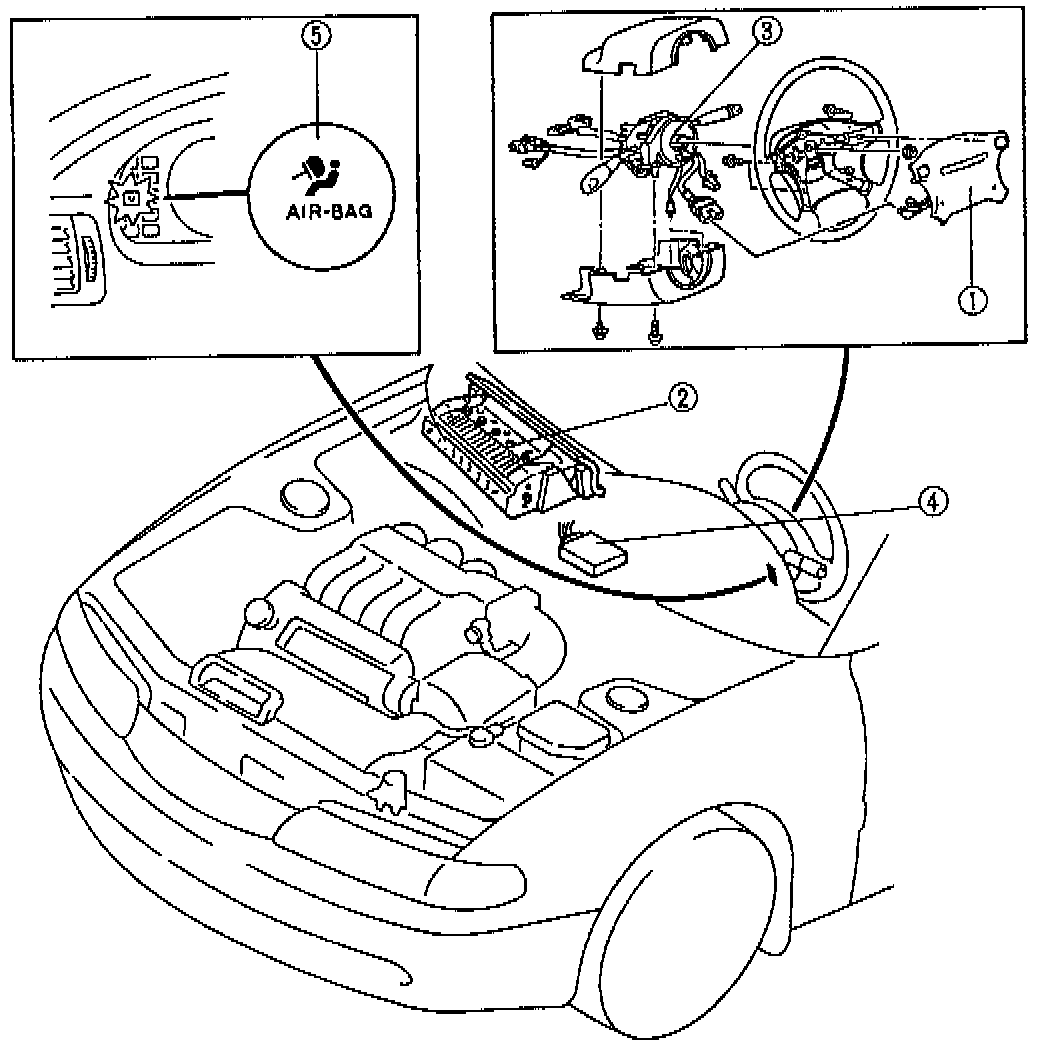

Structural View:




1. Driver-side Air Bag Module
2. Passenger-side Air Bag Module
3. Clock Spring
4. SAS Unit
5. Air Bag System Warning Light
