Windows: Description and Operation

Description
The power window system consists of the power window main switch assembly, power window sub- switches, and power window regulators.

System Operation

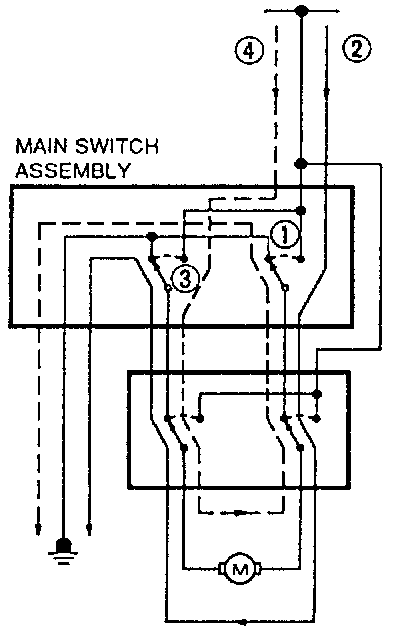

1. Main switch assembly
^ When one of the main switches is pressed, the switch closes (1), and current (2) (solid line) flows. The regulator motor rotates and the window opens.
^ When the switch is lifted, it closes (3), and current (4) (broken line) flows. The motor rotates in the opposite direction and the window closes.

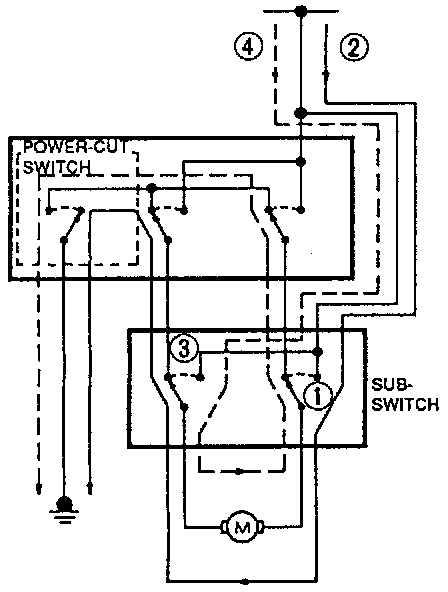

2. Subswitches
^ When the top of a subswitch is pressed with the powercut switch at ON, the switch closes (1), and current (2) (solid line) flows. The regulator motor rotates and the window opens.
^ When the bottom of the subswitch is pressed, the switch closes (3), and current (4) (broken line) flows. The motor rotates in the opposite direction and the window closes.
