Front Door Window Motor: Service and Repair

Removal / Installation
1. Raise the rear edge of the door glass about 80 mm {3.2 in} from the fully lowered position.
2. Disconnect the negative battery cable.

Note
^ Remove the door screen carefully so that it may be reused.

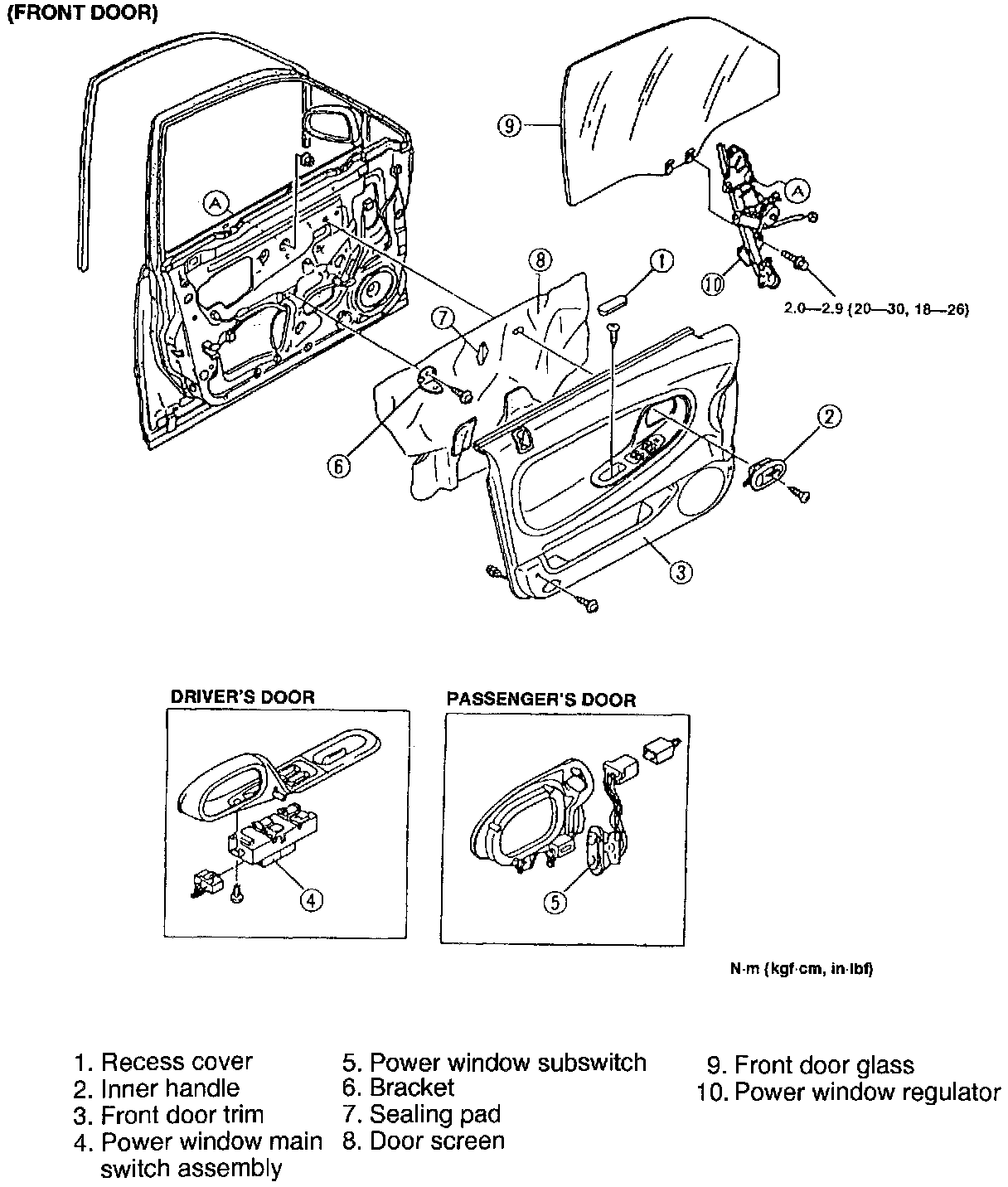

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
