Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 1997 >> B2300 Regular Cab 2WD L4-2.3L VIN A >> Repair and Diagnosis >> Diagrams >> Components >> Instrument Panel

Instrument Panel

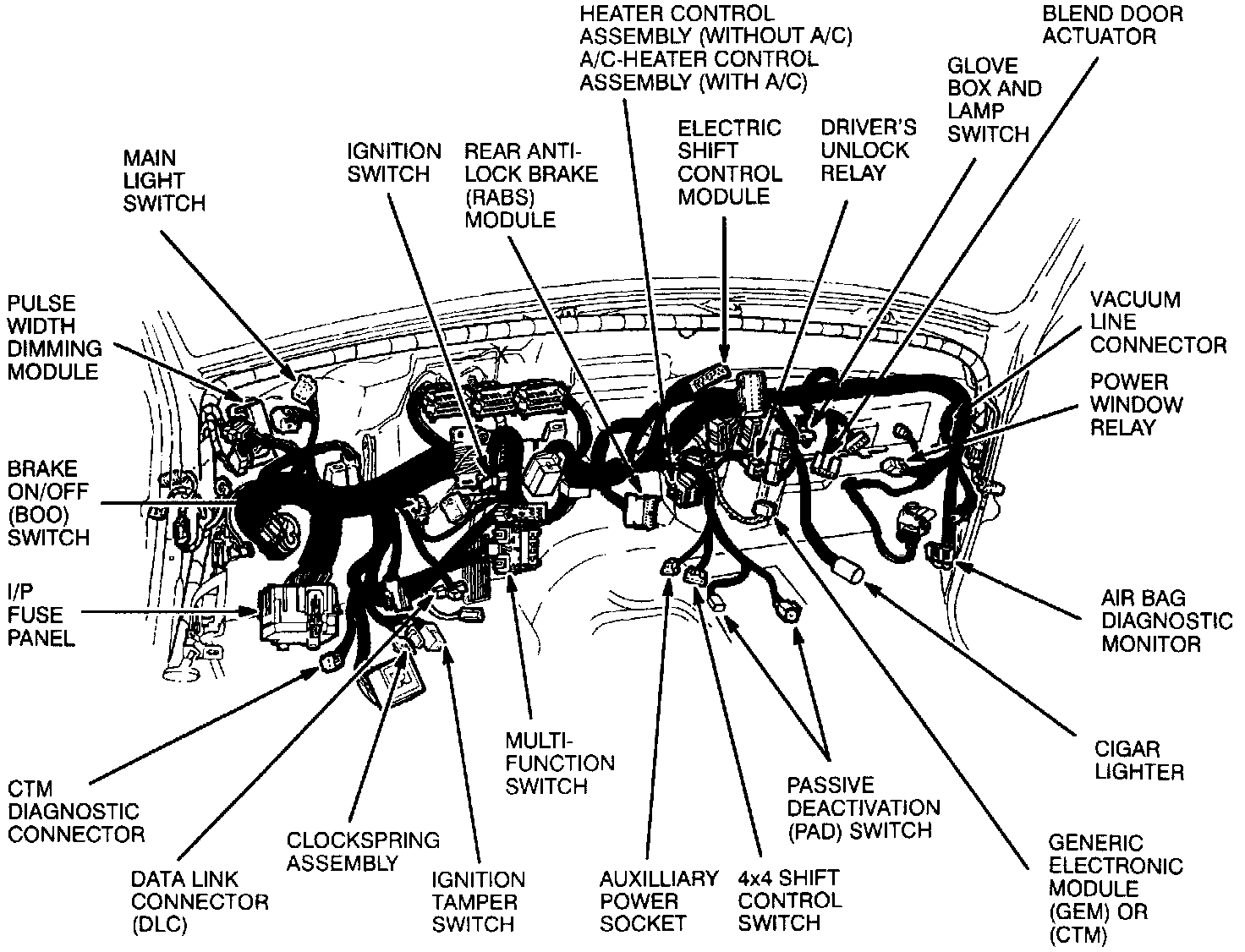

Parts Location- Instrument Panel:

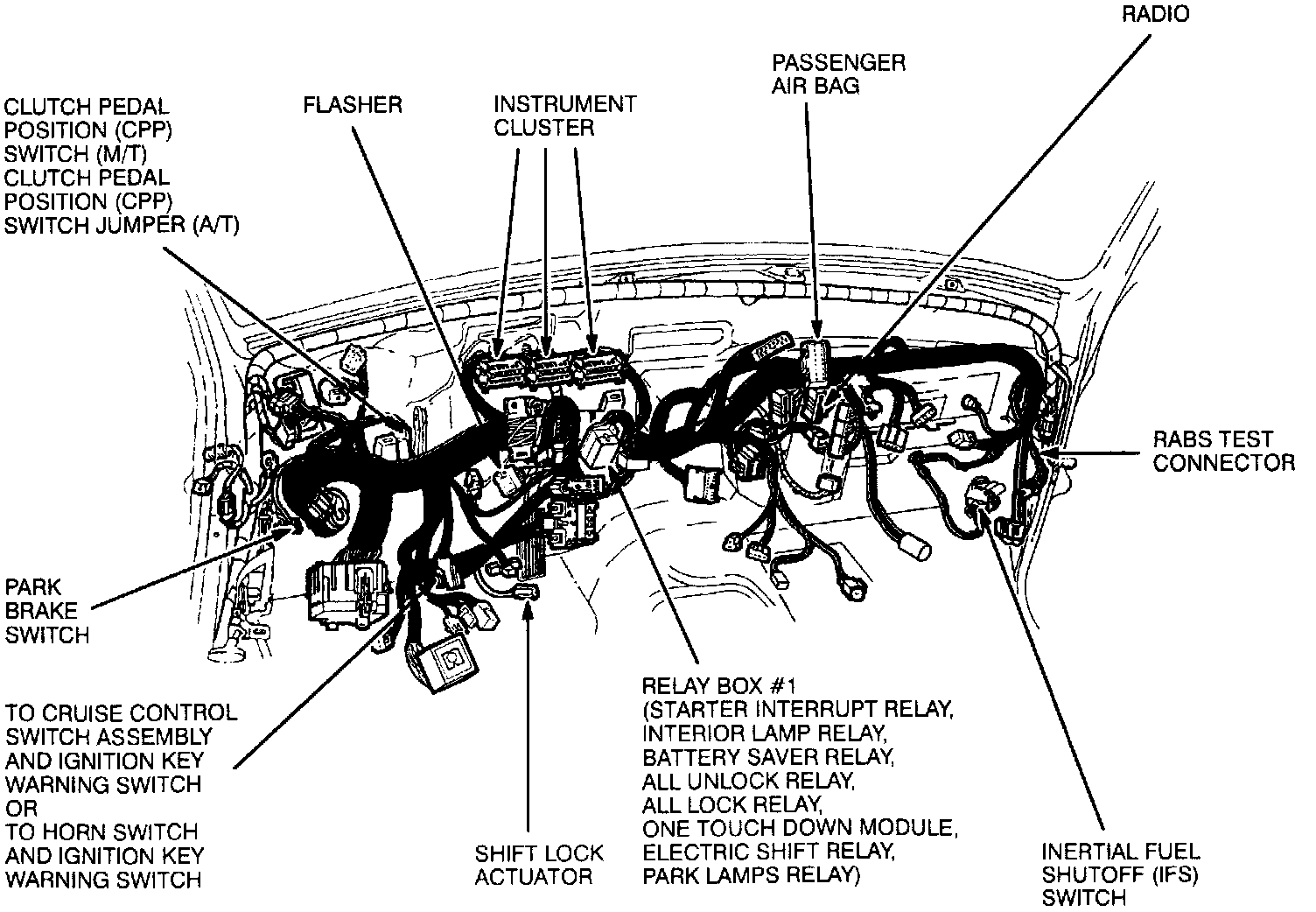

Parts Location- Instrument Panel:

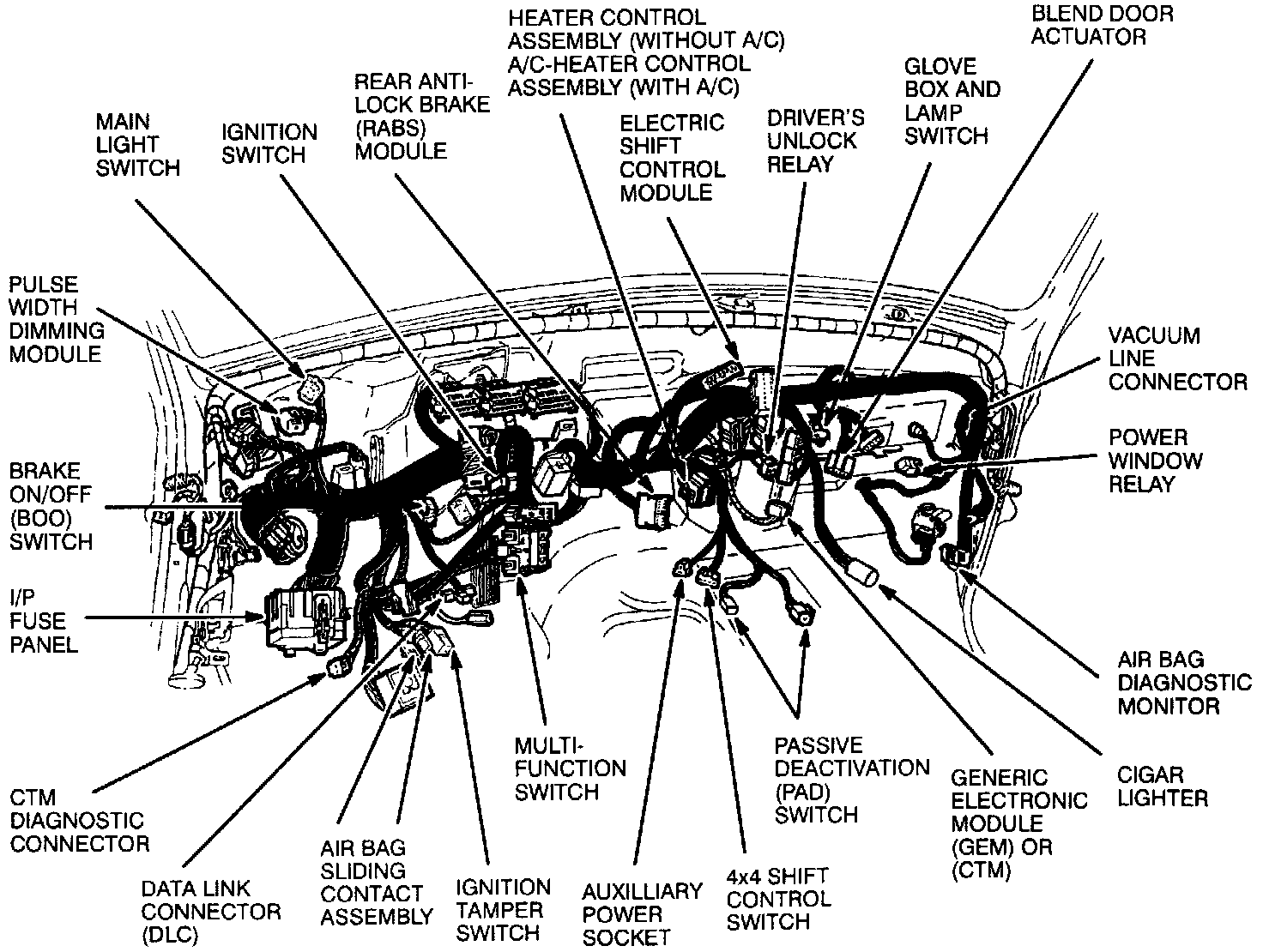

Parts Location- Instrument Panel:
