Using This Section

INTRODUCTION
Most of the Fuel and Emission Control Systems are Electronically Controlled, often making it difficult to diagnose problems, especially intermittent problems. Before undertaking actual checks, take a few minutes to talk with the customer who approaches with a driveability complaint. The customer is often a good source of information on such problems, especially the intermittent ones. Through a talk with the customer, you will usually find out what the symptoms are and under what conditions they occur.

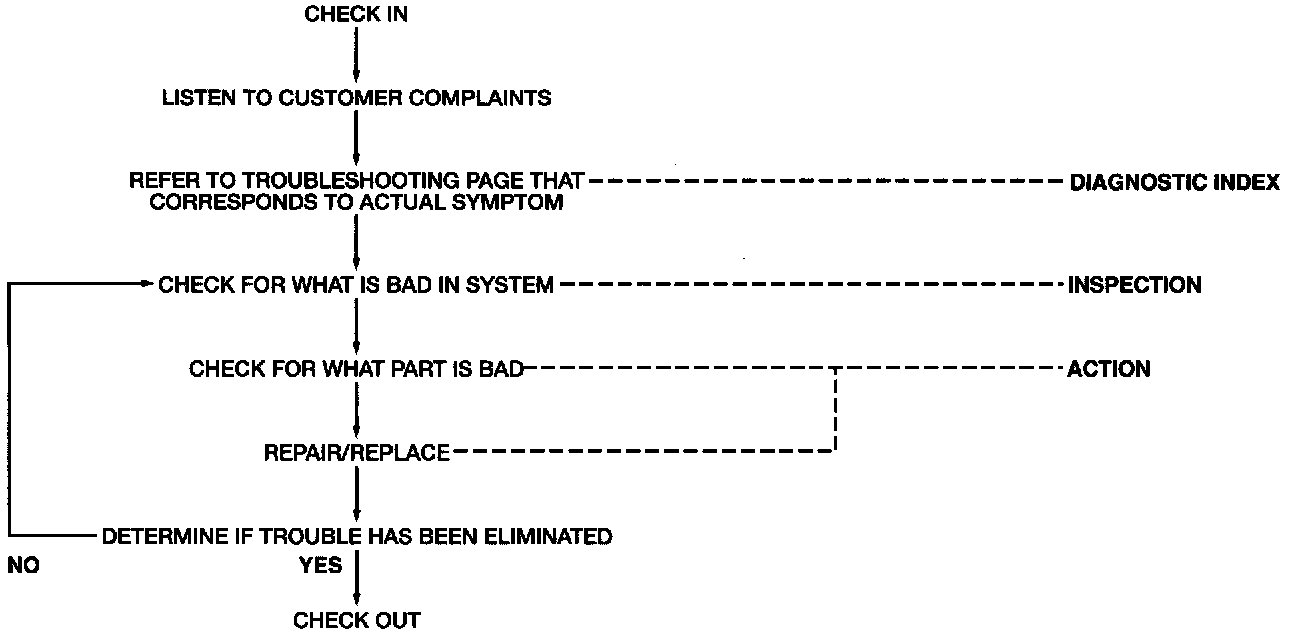

Work Flow




Diagnostic Index




Troubleshooting Chart

DESCRIPTION:
Further describes the system.
Confirm that the chart addresses the actual symptom before beginning troubleshooting.

STEP:
This shows the order of troubleshooting. Proceed with troubleshooting as indicated.

INSPECTION:
This describes an inspection to quickly determine the malfunction of parts.

ACTION:
This recommends the appropriate action to take as a result (Yes/No) of the INSPECTION.
