Ignition Cable: Testing and Inspection

High-tension lead

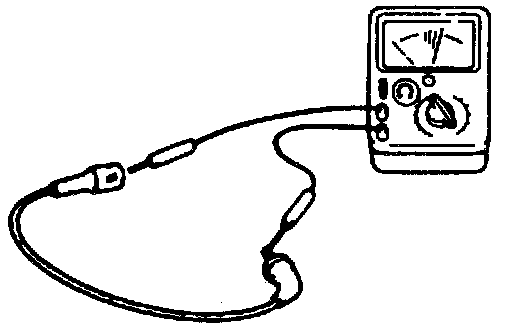

1. Measure resistance of the high-tension leads.

Specifications: less than 22.9 kohms per 1 m {3.28 ft}

2. If not as specified, replace the high-tension lead set.
