Electronic Brake Control Module: Testing and Inspection

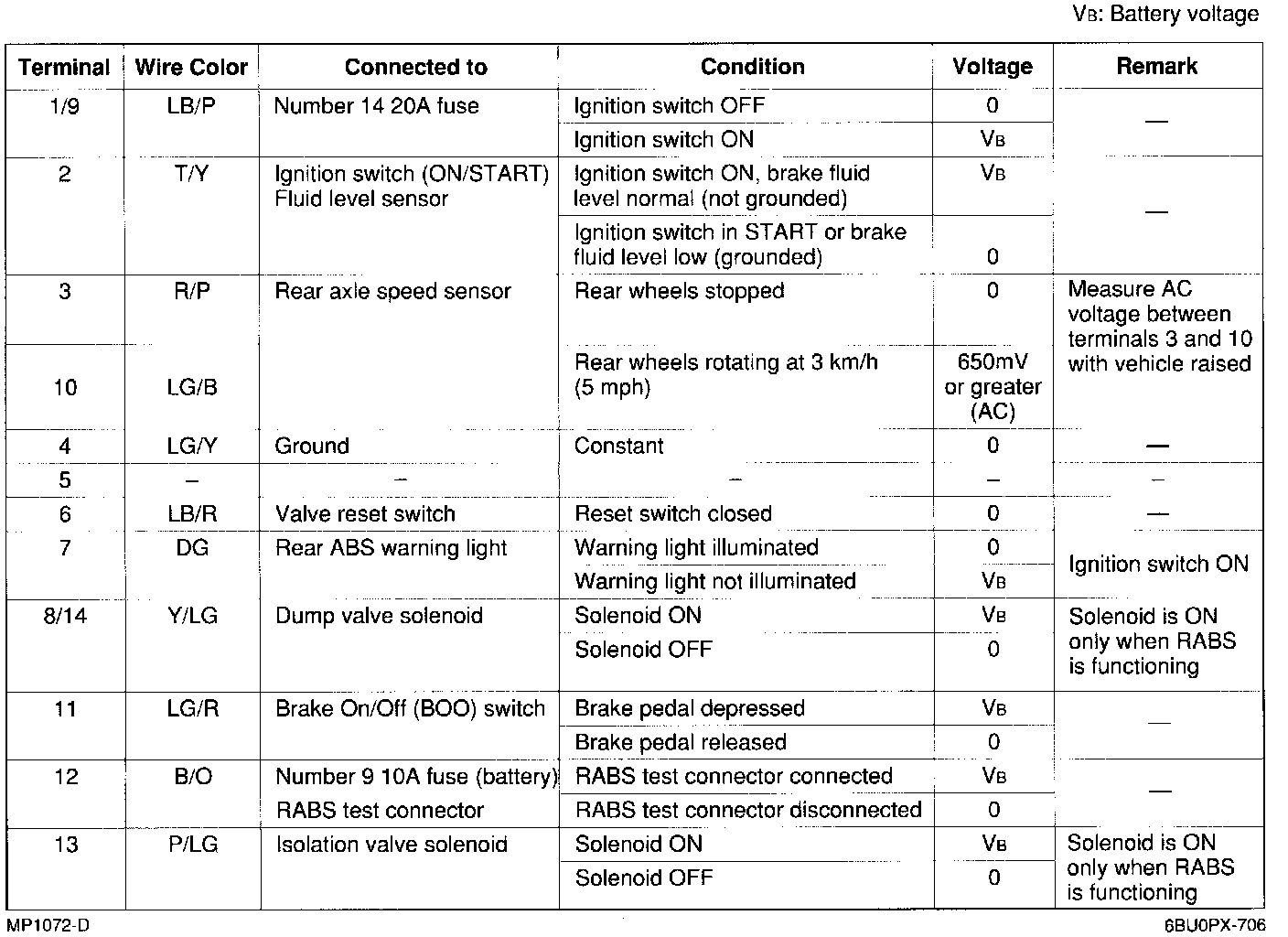

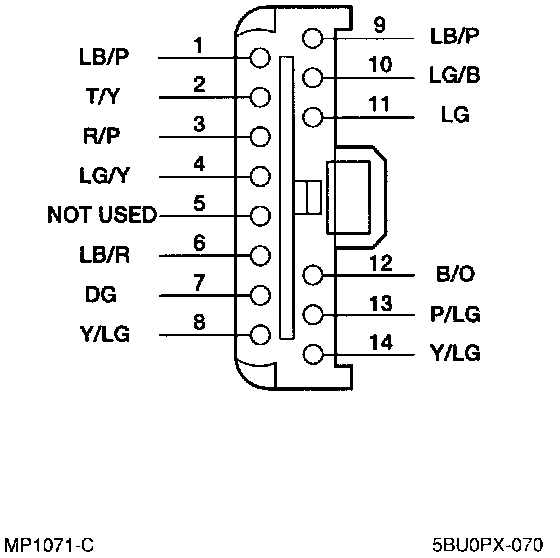

CAUTION: When checking for voltage at the control unit terminals, insert the probe from the rear of the connector (harness side) to prevent damaging the terminals.
