Air Bag Control Module: Locations

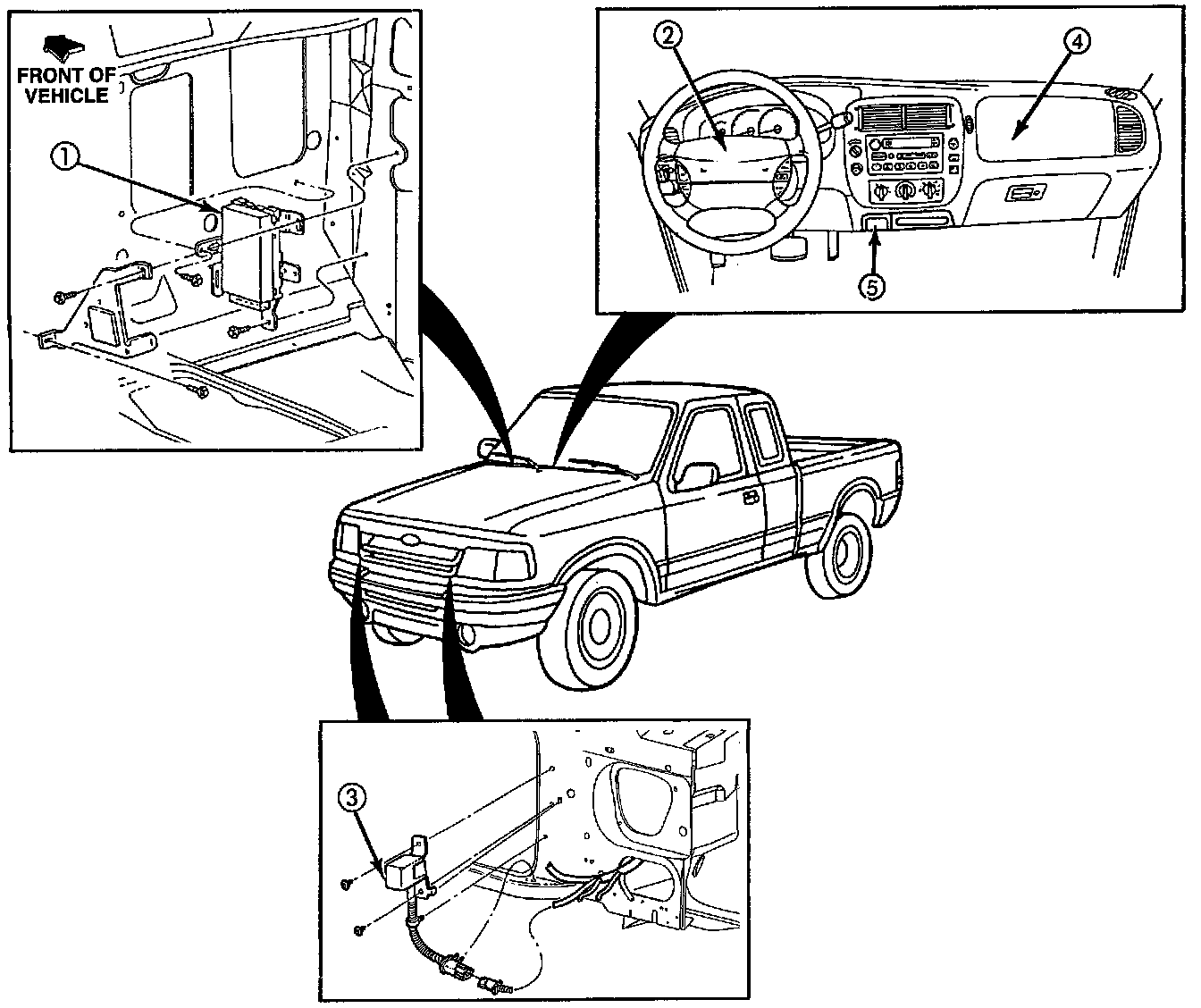

Structural View:

1. Diagnostic monitor
2. Driver air bag module
3. Primary crash sensor
4. Passenger air bag module
5. Passenger air bag deactivation (PAD) switch
6. Air Bag Sliding Contact (not shown)
