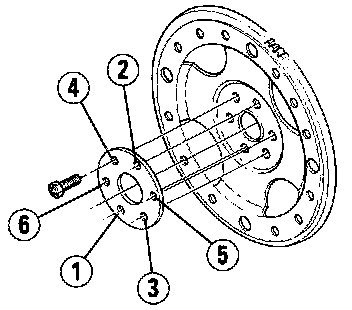

Flex Plate

DIMENSIONS
Flywheel Clutch Face Runout Limit: 0.005 inch
Flywheel Ring Gear Lateral Runout (T.I.R.): 0.060 inch






TORQUE SPECIFICATIONS
Flywheel to Crankshaft Bolt M-10: 73-87 Nm (56-64 ft. lbs.)
