Power Window Main Switch (Master Switch)




1. Remove power window switch.

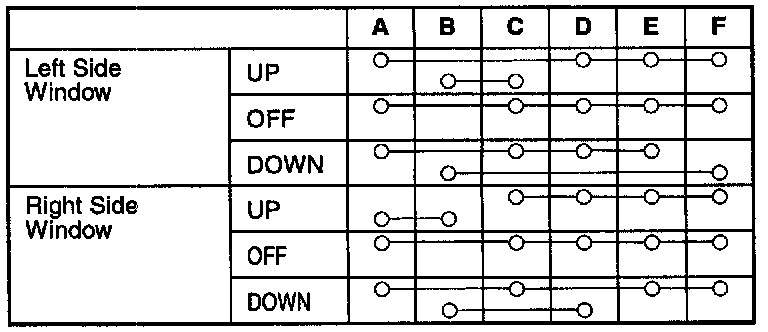

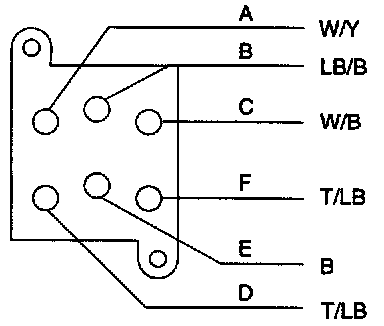

2. Check continuity between terminals with power window main switch in positions shown.
