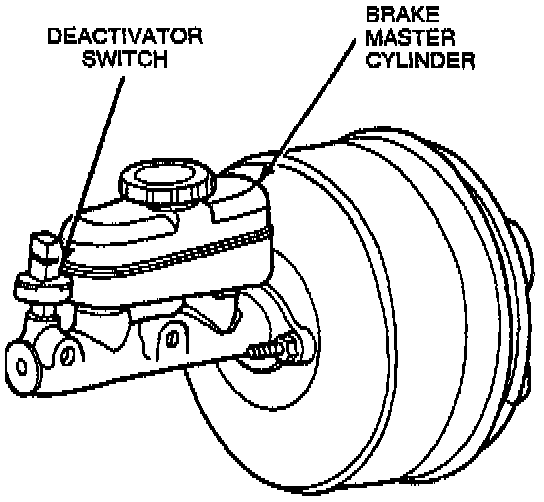

Brake Switch (Cruise Control): Service and Repair
1.
Disconnect electrical connector.
2.
Unscrew switch and remove.
3.
Reinstall switch.
NOTE
^
Tighten switch to
15 - 20 N.m (15.3 - 20.3 kgf.m, 12 - 14 ft-lb).
^
Bleed brake lines.
