Front Fender: Service and Repair




1. Disconnect the negative battery cable.
2. Remove the radiator grille.
3. Remove the front combination light.
4. Remove the front bumper.
5. Remove the windshield molding.

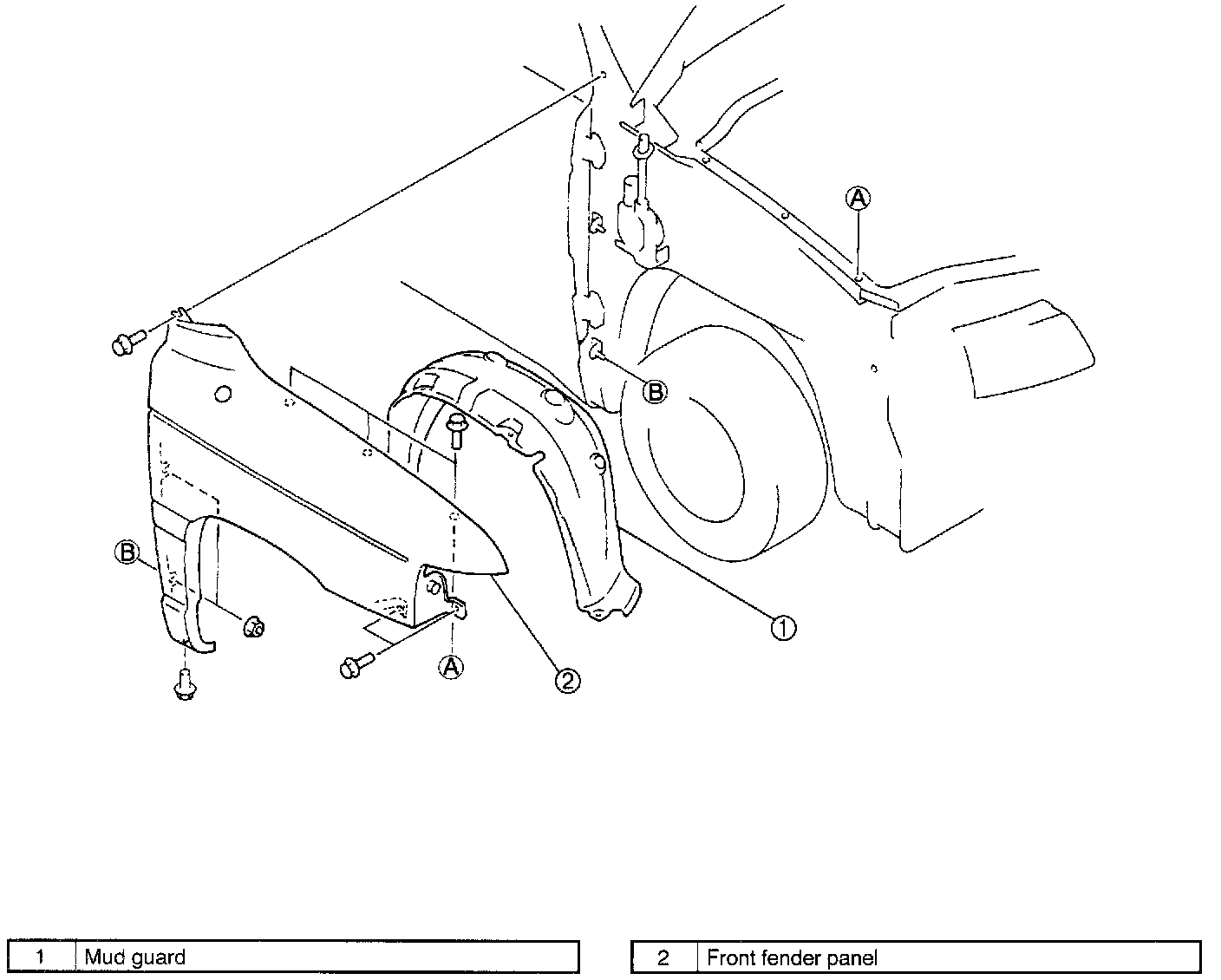

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
8. Install the windshield molding.
9. Install the front bumper.
10. Remove the front combination light.
11. Remove the radiator grille.
12. Connect the negative battery cable.
