Trunk / Liftgate Lock: Adjustments
1.
Verity that the liftgate can be closed easily and that there is no looseness
2.

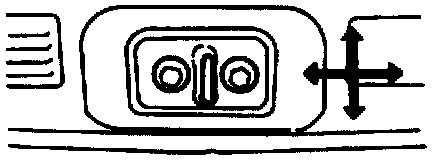

If not correct, loosen the liftgate lock striker installation bolts and move the striker horizontally or vertically.
3.
Tighten the liftgate lock striker installation bolts.
Tightening torque: 18-26 Nm (14-19 ft.lbs.)
