Cruise Control Servo Cable: Service and Repair
1.

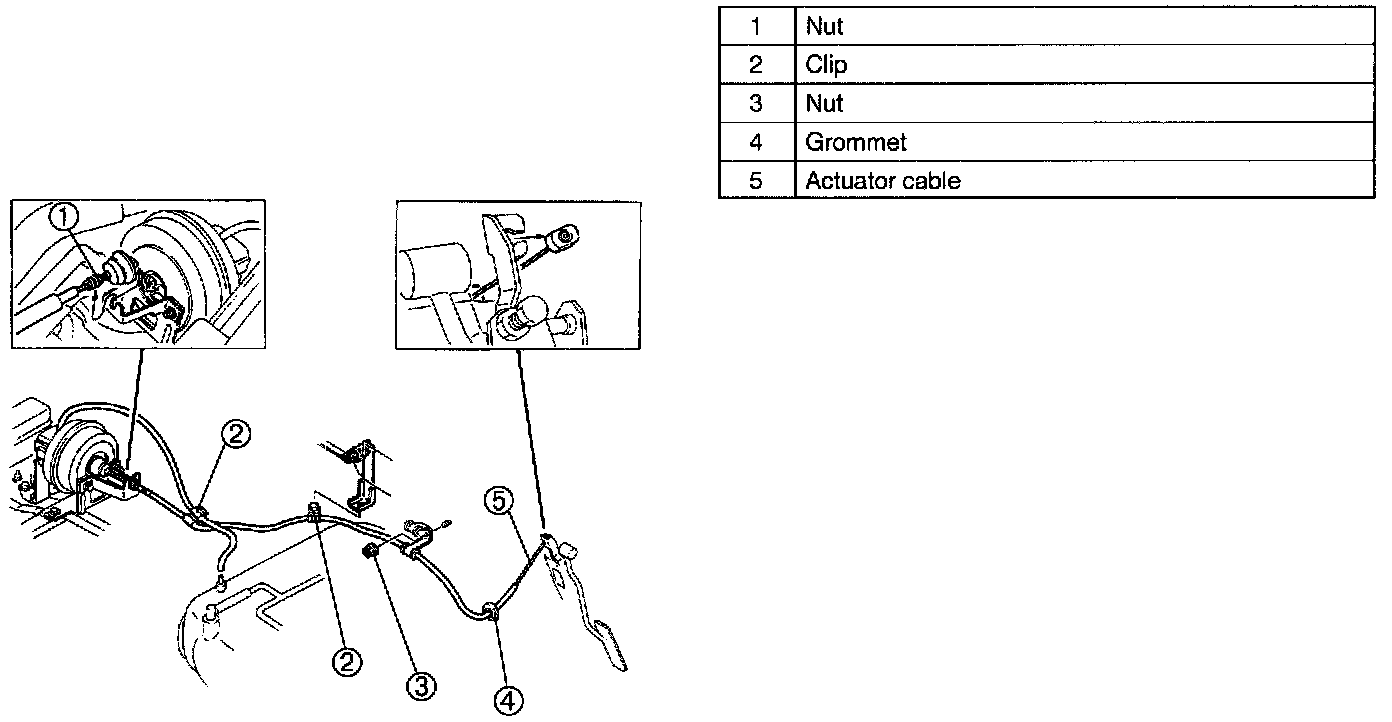

Remove in the order indicated in the table.
2.
Install in the reverse order of removal.
3.
Adjust the actuator cable.
