Common Connector List

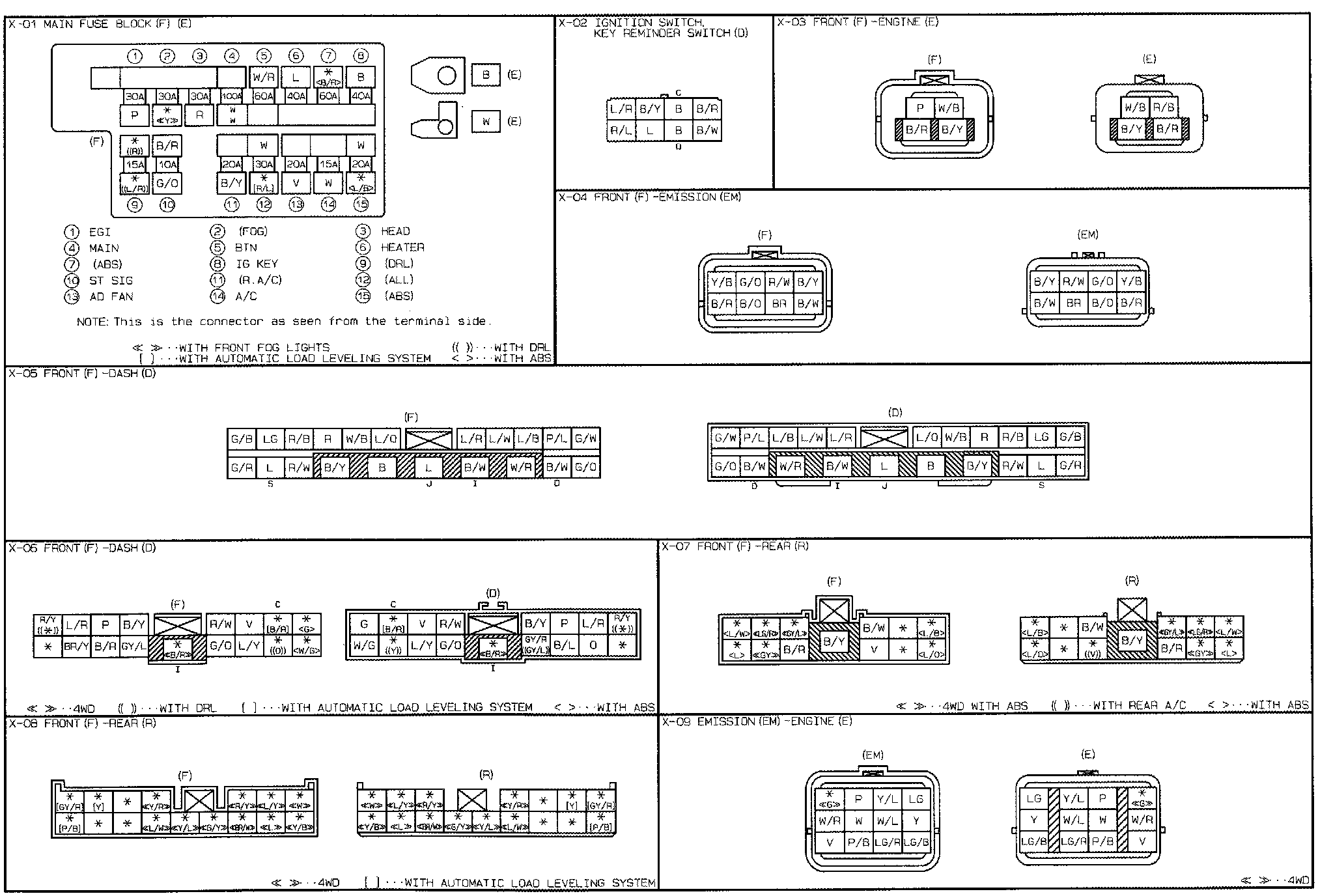

Common Connectors (X-01 to X-09):

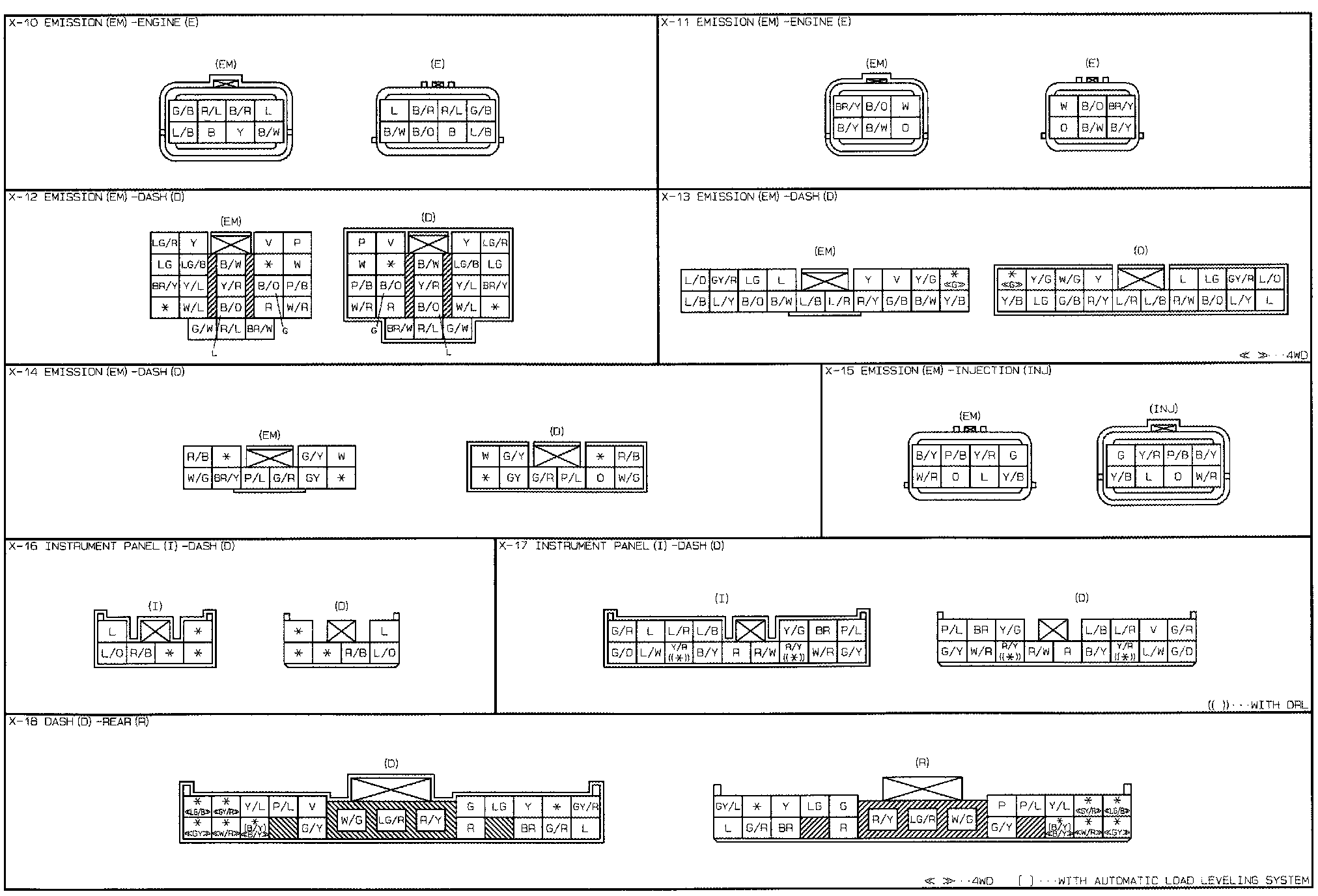

Common Connectors (X-10 to X-18):

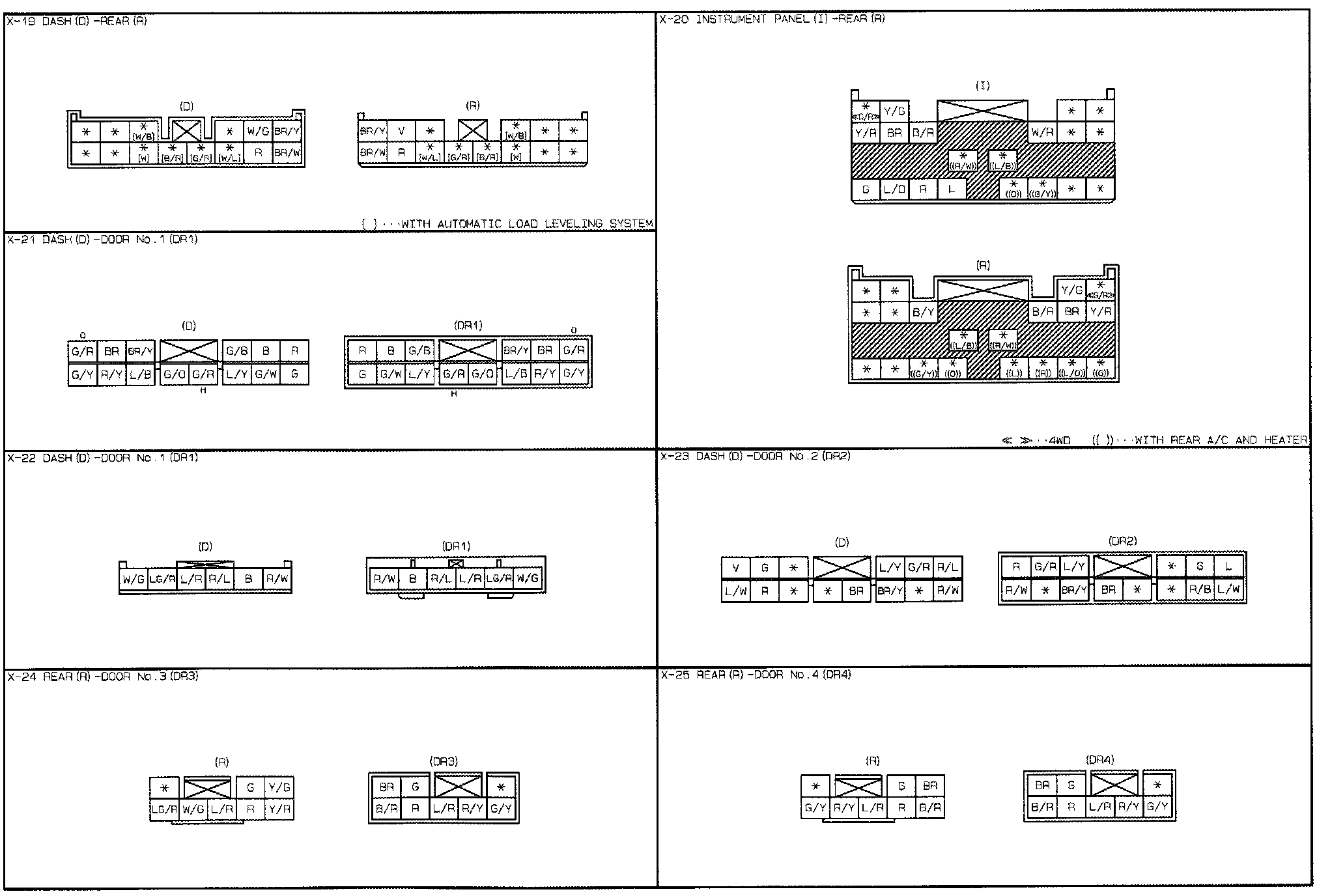

Common Connectors (X-19 to X-25):

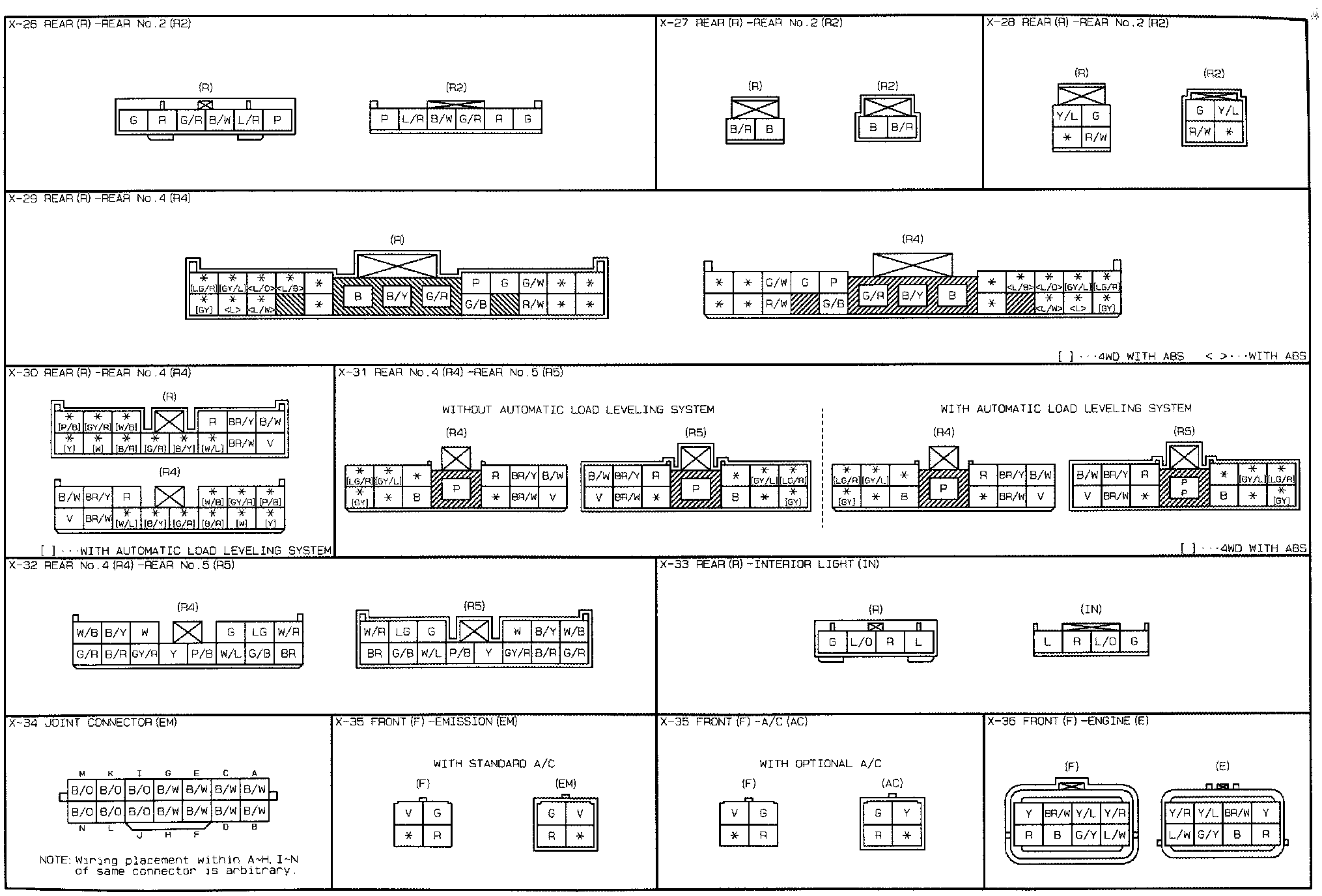

Common Connectors (X-26 to X-36):
