Compressor Clutch Relay: Testing and Inspection







1. Disconnect the negative battery cable.
2. Remove the A/C relay.

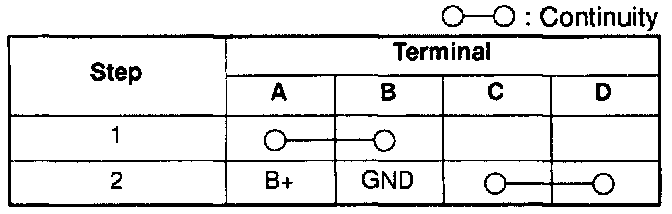

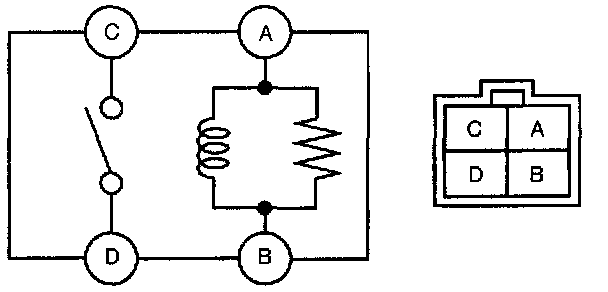

3. Check for continuity between the A/C relay terminals by using an ohmmeter.
4. If not as specified, replace the A/C relay.
