Compressor Clutch: Service and Repair

1. Remove the A/C compressor.

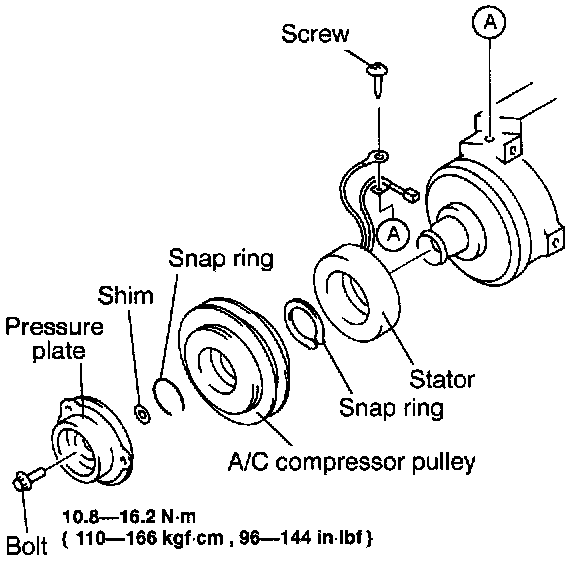

2. Disassemble in the order indicated in the table.

Disassembly Notes

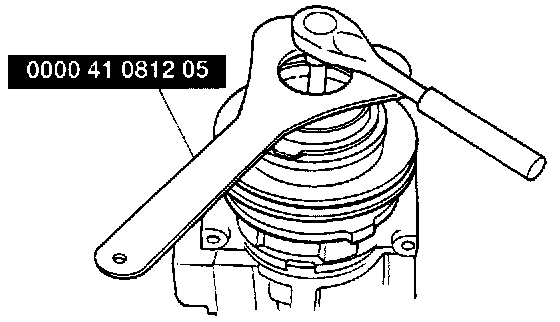

Hold the pressure plate in place by using the Special Service Tool and remove the bolt.

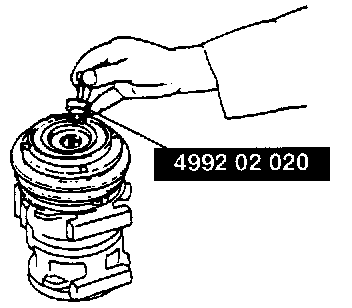

Remove the pressure plate by using the SST.

3. Assemble in the reverse order of disassembly indicated in the table.
4. Adjust the magnetic clutch.
5. Install the A/C compressor.
