Compressor Clutch: Testing and Inspection
1.
Disconnect the negative battery cable.
2.
Disconnect the magnetic clutch connector.
3.

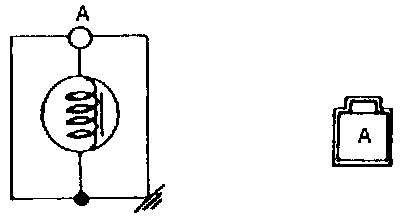

Connect battery positive voltage to terminal A of magnetic clutch and ground to the A/C compressor body.
4.
Verify that the magnetic clutch operates.
5.
If not as specified, replace the stator.
