Front Fan Switch







1. Remove the heater control unit.

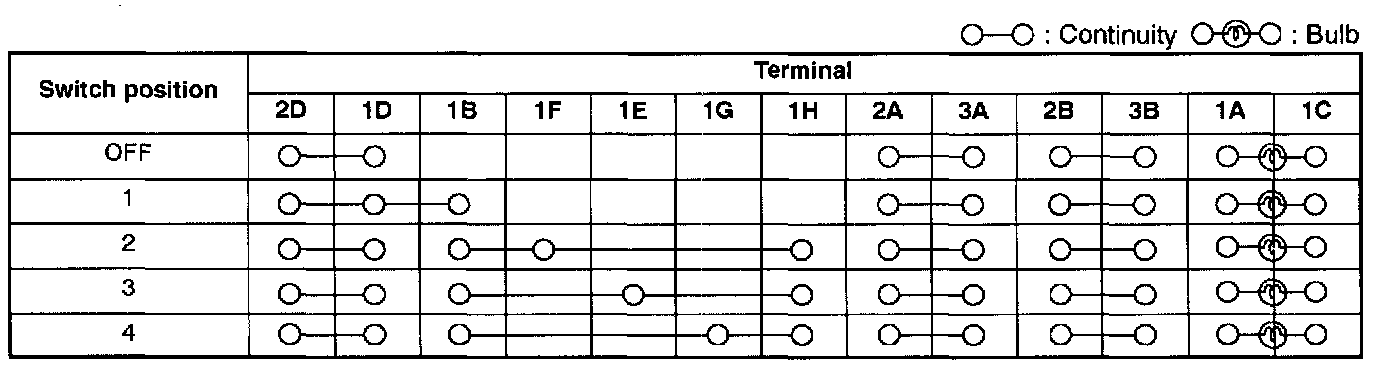

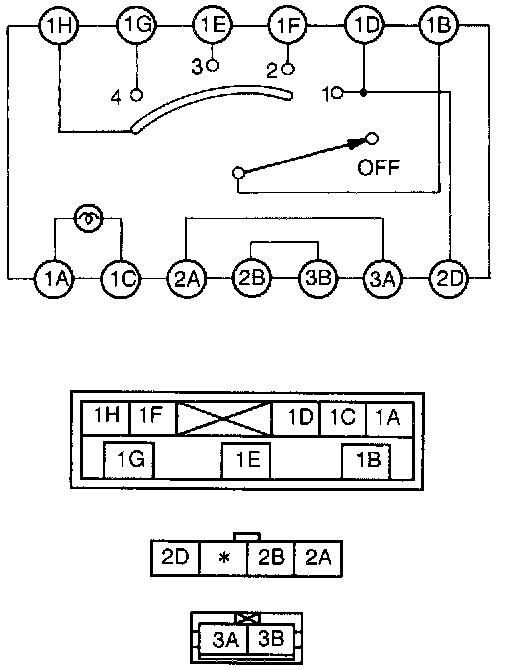

2. Check for continuity between the front fan switch terminals by using an ohmmeter.
3. It not as specified, replace the front fan switch.
