Refrigerant Pressure Sensor / Switch: Testing and Inspection
1.
Install the manifold gauge set.
2.
Disconnect the refrigerant pressure switch connector.
3.
Verify that the high-pressure readings of the manifold gauge.
4.

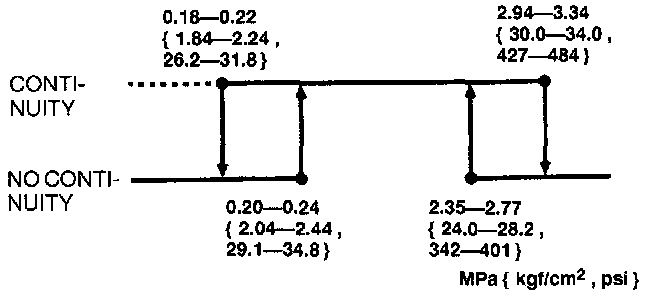

Check for continuity between both terminals of the refrigerant pressure switch.
5.
If not as specified, replace front cooler pipe No.2.
