Fuel Filter: Service and Repair

WARNING: Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate the skin and eyes. To prevent this, always complete the FUEL SYSTEM PRESSURE RELEASE.

High Pressure Fuel Filter Replacement:

1. Disconnect the fuel hoses from the fuel filter.

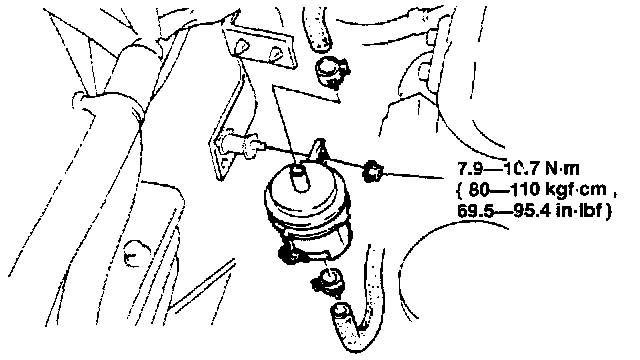

2. Remove and install the fuel filter as shown.
3. Verify that the fuel hoses are pushed fully onto the fuel filter nipples.
