Fluid - Differential: Service and Repair
1.

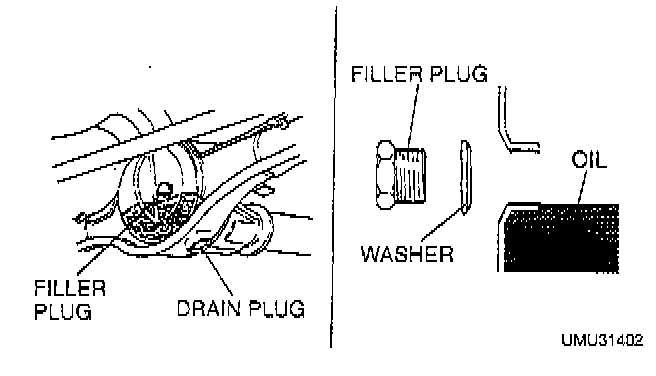

Remove the plugs.
2.
Drain the oil into a container.
3.
Wipe the plugs clean.
4.
Install the drain plug and a new washer. Tighten to
40 - 53 Nm (29 - 39 ft. lbs.).
5.
Add the specified oil from filler plug until the level reaches the brim of the plug hole.
6.
Face the tapered side of a new washer as shown, then install the filler plug and tighten to
40 - 53 Nm (29 - 39 ft. lbs.).
