Home
>>
Mazda
>>
1997
>>
MPV ES 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Service and Repair
Fuse Block: Service and Repair
1.
Disconnect the negative battery cable.
2.

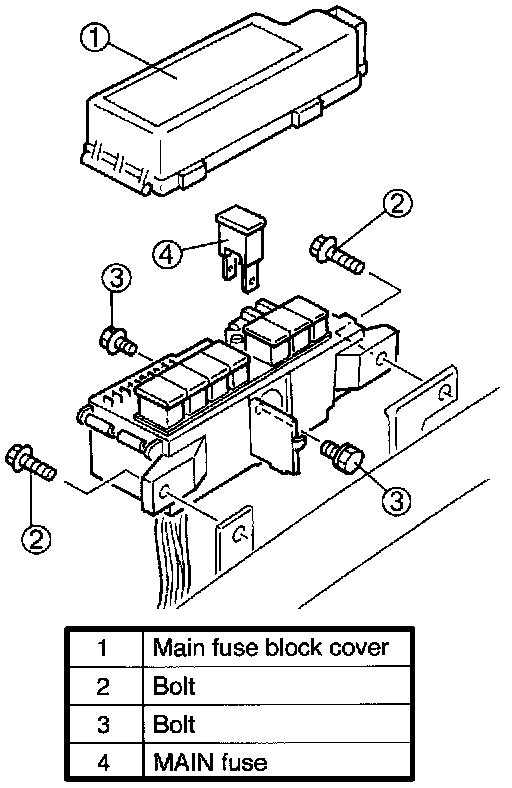

Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
4.
Connect the negative battery cable.
