Air Gap

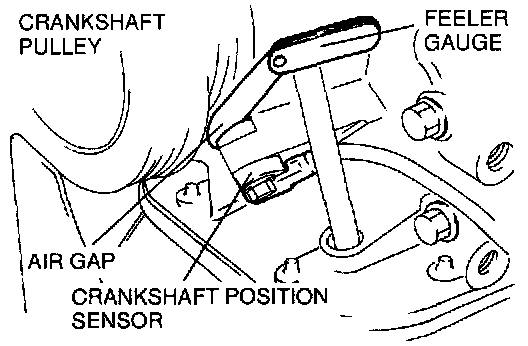

Crankshaft Position Sensor Air Gap Inspection:
1.
Measure the air gap between crankshaft pulley and
crankshaft position sensor by using a feeler gauge.
Specification: 0.5 - 1.5 mm (0.020 - 0.059 in) 2.
If not as specified, replace the crankshaft pulley or the
crankshaft position sensor.
