With SST-Engine Signal Monitor

SSTs Engine Signal Monitor:

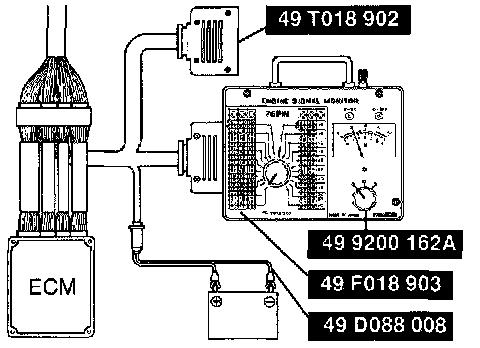

1. Connect the SSTs (Monitor, Engine Signal and Adapter Harness) to the PCM.

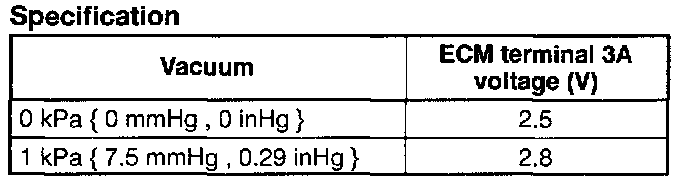

2. Apply vacuum to the fuel tank pressure sensor by using a vacuum pump. Measure the pressure at PCM terminal 3A.




3. If not as specified, replace the fuel tank pressure sensor.
