With SST-New Generation Star Tester

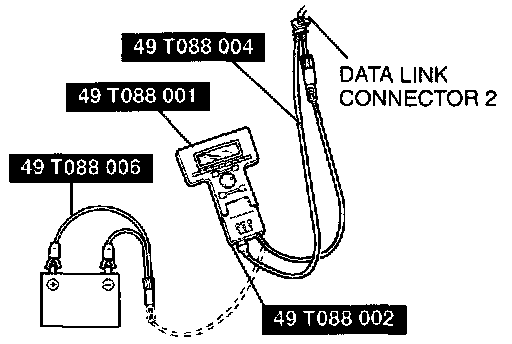

Special Service Tools (SST)s New Generation Star (NGS) Tester Connected To DLC-2:




1. Connect the Special Service Tools (SST)s New Generation Star (NGS) tester to the data link connector 2 located under the driver side dashboard.

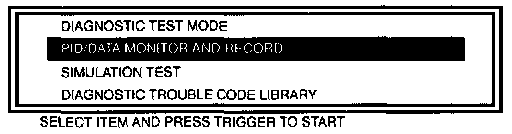

2. Select the "PID/DATA MONITOR AND RECORD" function on the NGS display.
3. Apply vacuum to the fuel tank pressure sensor by using a vacuum pump.
4. Select "FTP V" on the NGS display. The NGS measures and shows the voltage.

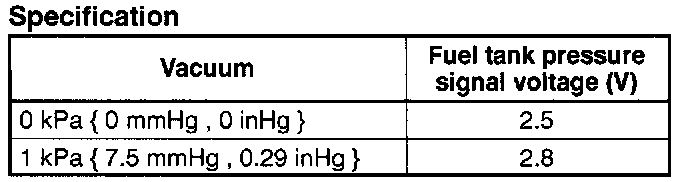

5. If not as specified, replace the fuel tank pressure sensor.
