Quick Diagnosis Chart

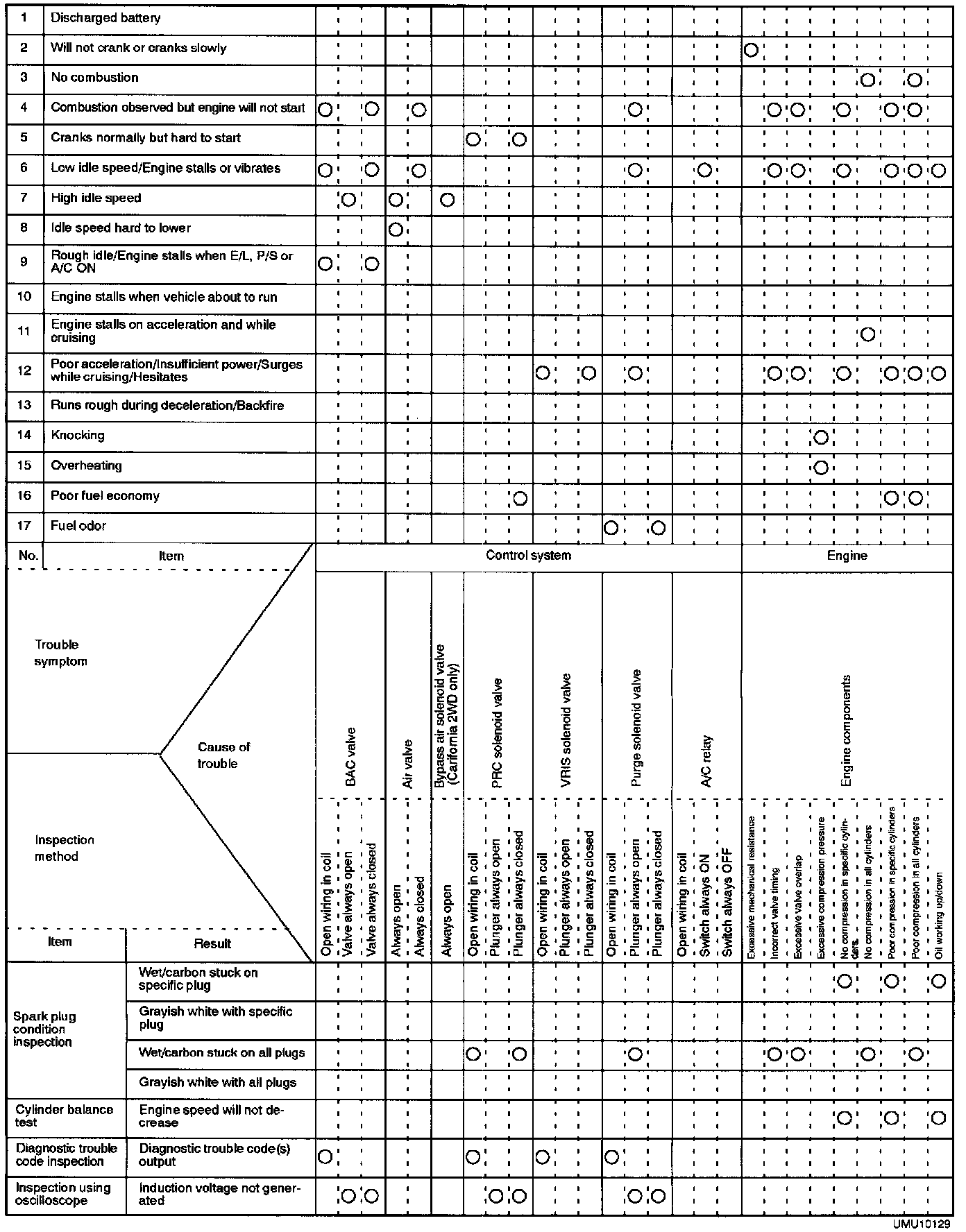

Chart 1 of 2 Part 1 of 2:




Chart 1 of 2 Part 1 of 2

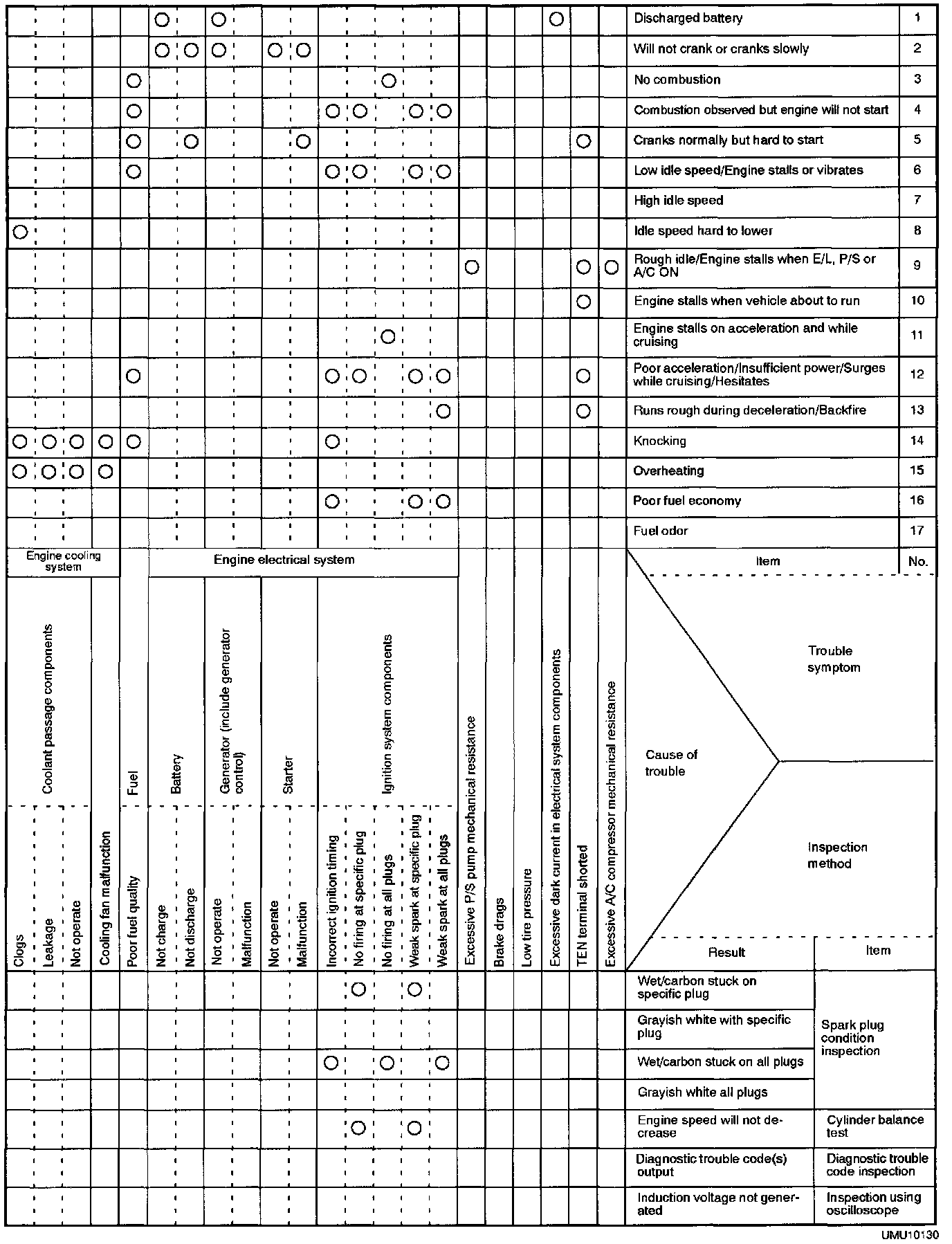

Chart 1 of 2 Part 2 of 2:




Chart 1 of 2 Part 2 of 2

Chart 2 of 2 Part 1 of 2:




Chart 2 of 2 Part 1 of 2

Chart 2 of 2 Part 2 of 2:




Chart 2 of 2 Part 2 of 2
