Timing Gear

Camshaft
Pulley 71 - 80 Nm {7.2 - 8.2 kgf/m, 53 - 59 ft. lbs.}



IMPORTANT:

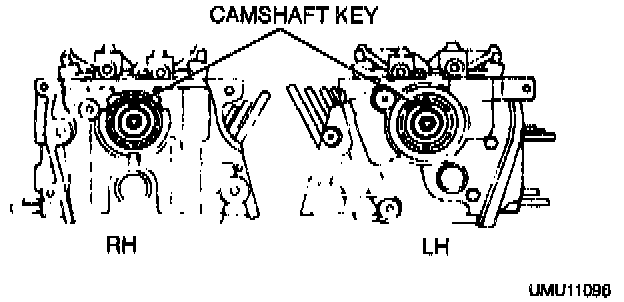

- Verify that the camshaft keys face upward as shown.

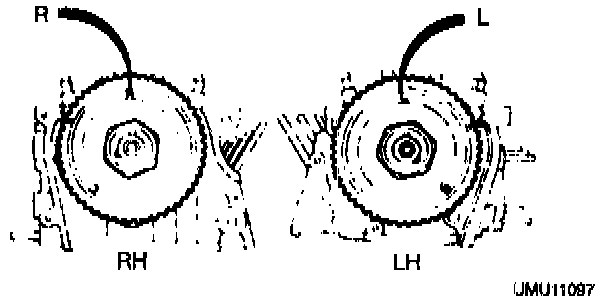

- Install the camshaft pulleys with the L mark (left bank) or the R mark (right bank) face upward as shown.

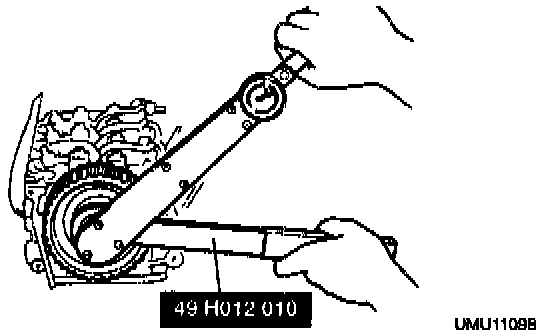

- Tighten the camshaft pulley by using the SST.
