Engine
>>
Drive Belt
Drive Belt
Drive Belt Deflection Specification Chart:

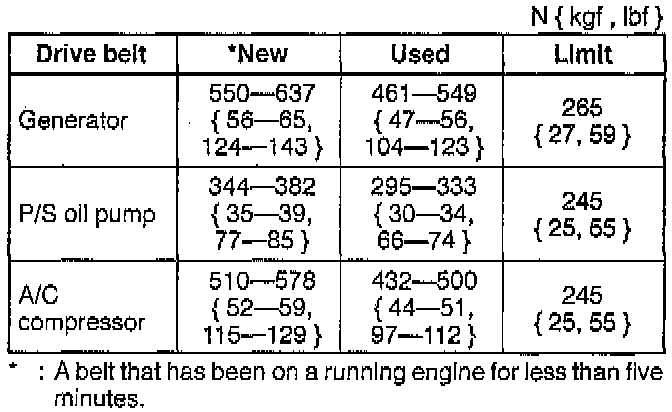

Drive Belt Tension Specification Chart:
