Generator Removal / Installation

CAUTION:
- Reversing the battery connections or using high-voltage testers will damage the rectifier.
- Do not start the engine while the connector is disconnected from terminals L and S. It can damage the generator.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.




NOTE: Battery positive voltage is always present at generator terminal B when the battery is connected.

1. Disconnect the negative battery cable.

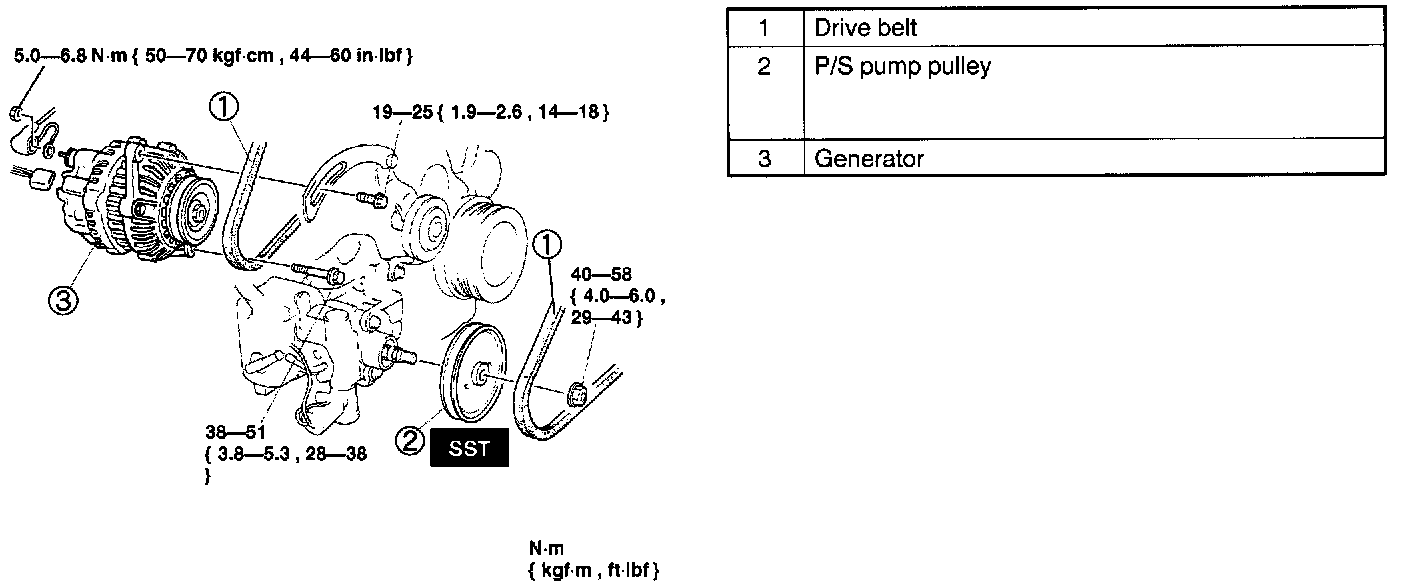

2. Remove in the order indicated in the table.




3. Install in the reverse order of removal indicated in the table.
