Key Reminder Switch Inspection
1. Remove the column cover.
2. Remove the driver-side side panel.
3. Remove the lower panel.
4. Disconnect the ignition switch connector.

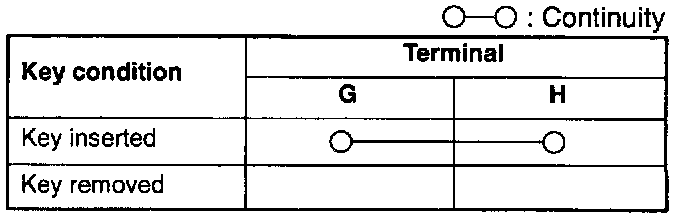

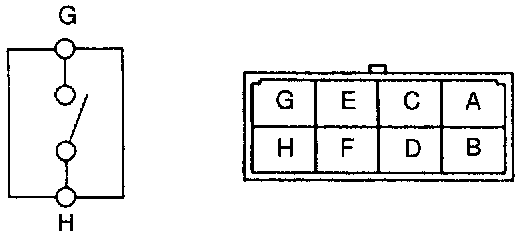

5. Check for continuity between the ignition switch terminals by using ohmmeter.
1. Remove the column cover.
2. Remove the driver-side side panel.
3. Remove the lower panel.
4. Disconnect the ignition switch connector.
5. Check for continuity between the ignition switch terminals by using ohmmeter.
