Transmission Temperature Sensor/Switch: Service and Repair

REPLACEMENT
1. Remove the control valve body.

NOTE: The transmission fluid temperature sensor is part of the solenoid valve harness.

2. Remove the solenoid valve harness from the transmission case.

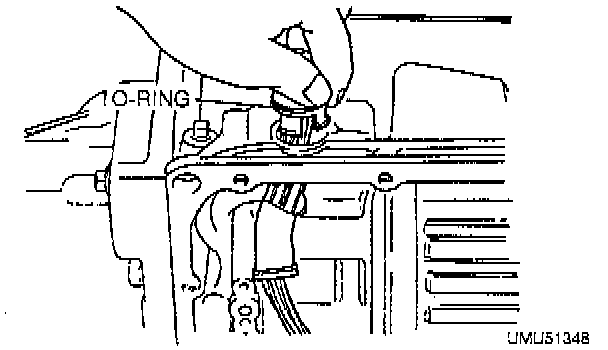

3. Apply ATF to a new O-ring and install it on the solenoid valve harness.
4. Install the solenoid valve harness into the transmission case.
5. Install the control valve body.
6. Carry out the line pressure test and time lag test.
7. Carry out the road test.
