Mazda
>>
1997
>>
MPV ES 2WD V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Rear Defogger
>>
Rear Defogger Relay
>>
Service and Repair
Rear Defogger Relay: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the
relay box
cover.
3.

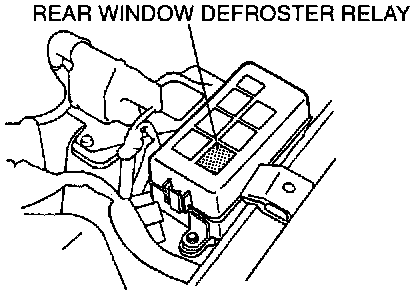

Remove the rear window defroster relay.
4.
Install in the reverse order of removal.
