Power Window Subswitch Inspection
Power Window Subswitch Inspection
1.
Remove the power window subswitch.
2.

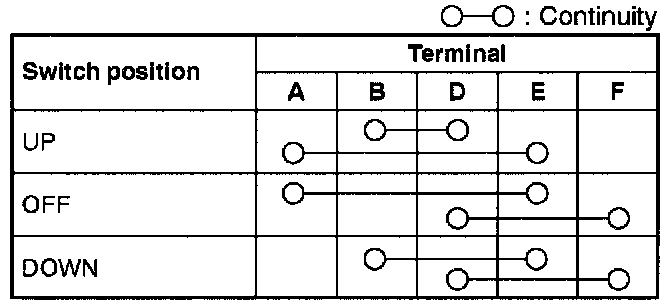

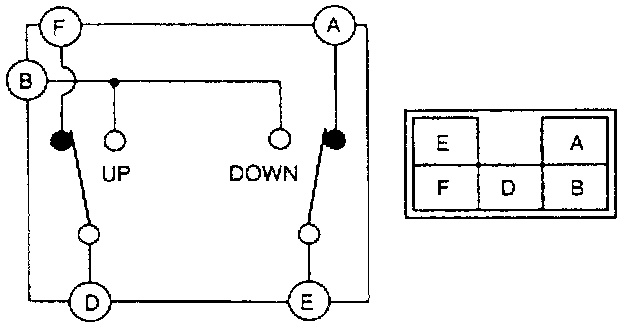

Check for continuity between the power window subswitch terminals by using an ohmmeter.
3.
If not as specified, replace the power outside mirror.
