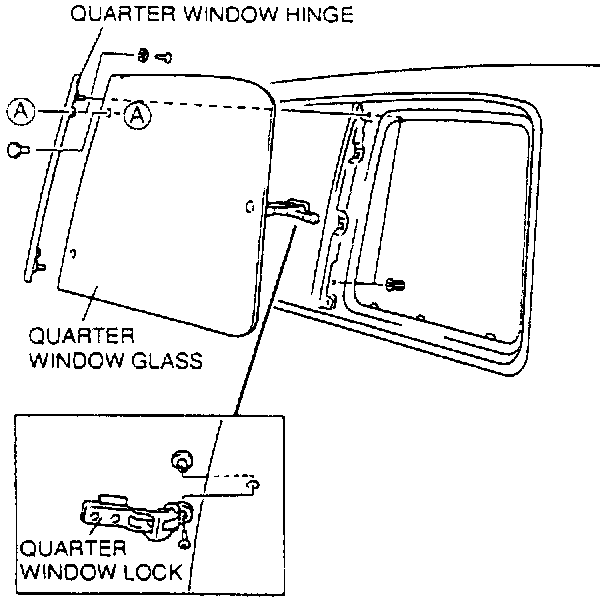

Quarter Window Glass: Service and Repair
1.
Remove the B-pillar upper trim.
2.
Remove the
quarter window glass
.
3.
Remove the quarter window lock.
4.
Remove the quarter window hinge.
5.
Install in the reverse order of removal.
