Home >> Mazda >> 1997 >> MPV ES 4WD V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, Transfer Case

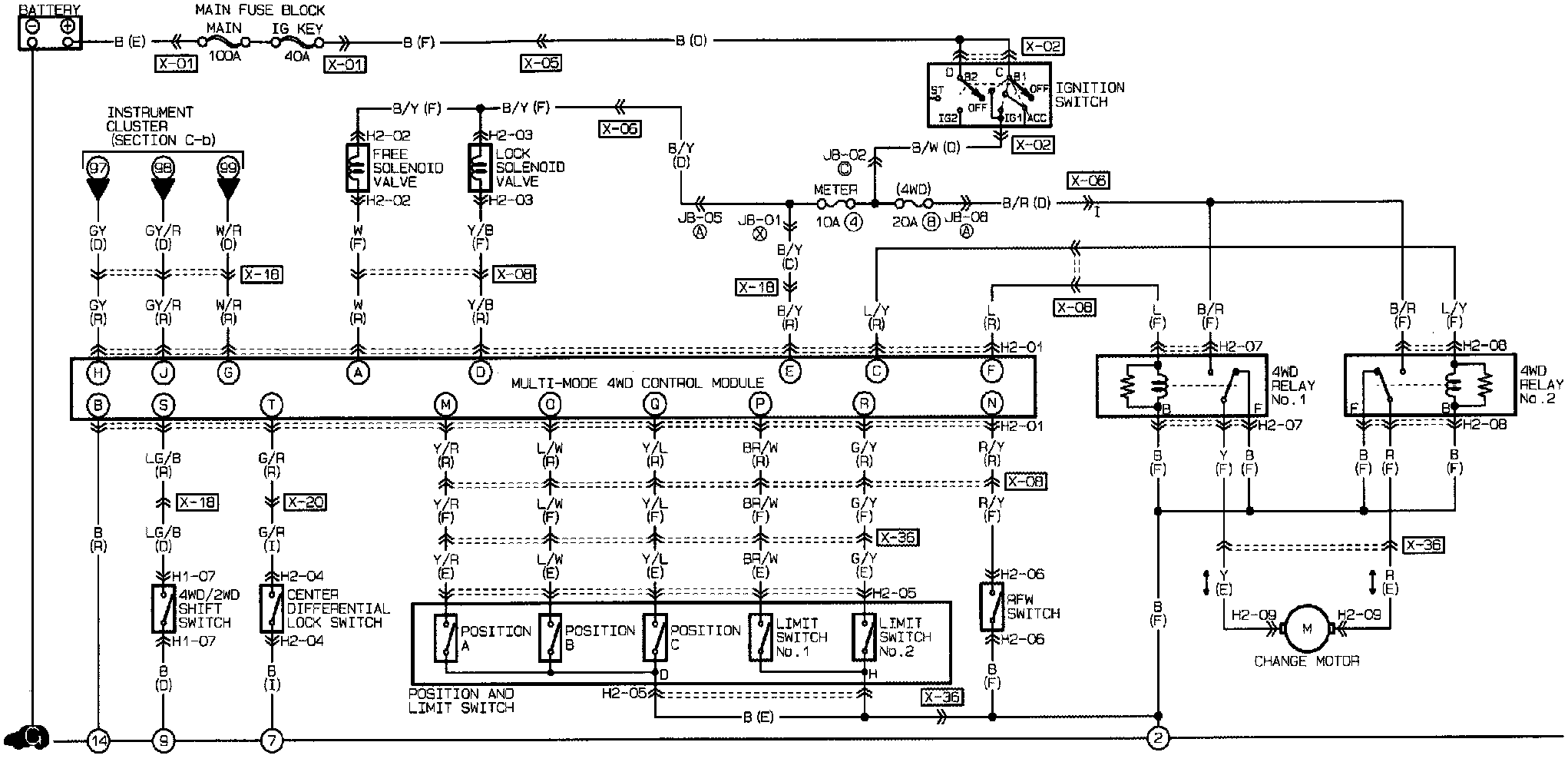

Control Module, Transfer Case

Multi-Mode 4WD System:
