Crankshaft Main Bearing

TORQUE SPECIFICATIONS

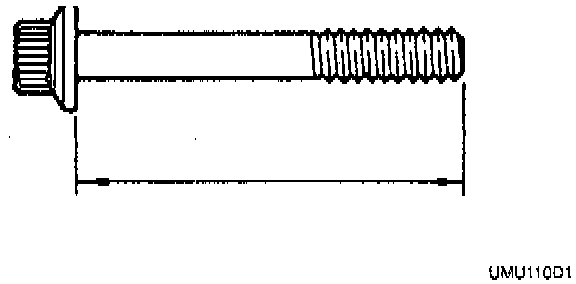

1. Measure each bolt length. Replace if necessary.
Length: 84.7-85.3 mm (3.34-3.35 in)
Maximum: 85.5 mm (3.37 in)

Main Torque Sequence:

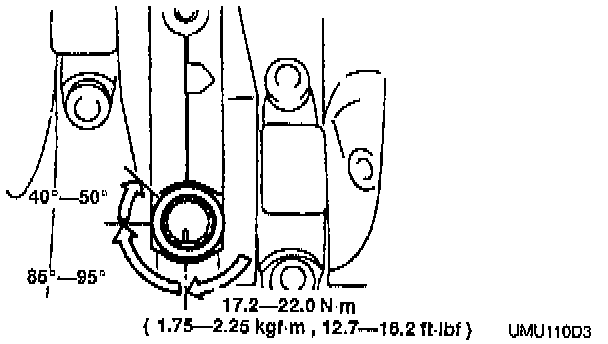

2. Tighten the bolts in three steps in the order shown.
Tightening torque: 17.2-22.0 Nm (12.7-16.2 ft lbs.)

3. Put a paint mark on each bolt head.





4. Using this mark as a reference, tighten the bolts by turning each 85°-95° in the sequence.
5. Further tighten each bolt by turning another 40°-50°.

DIMENSIONS
Oil Clearance: 0.025-0.037 mm (0.0010-0.0014 in)
Maximum: 0.08 mm (0.0031 in).
