Common Connector List

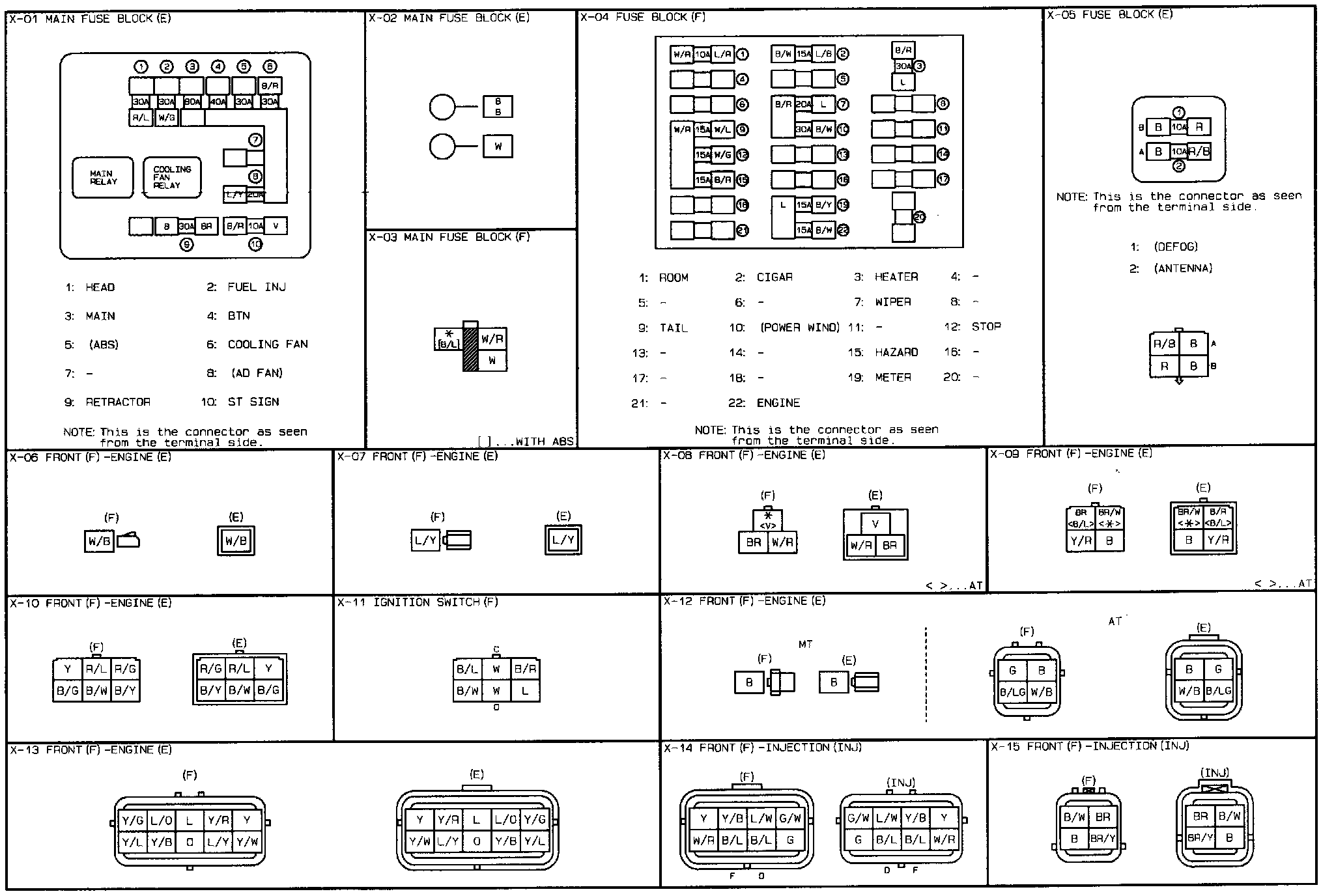

Common Connector List (X-01 To X-15):
Common Connector List (X-16 To X-23):

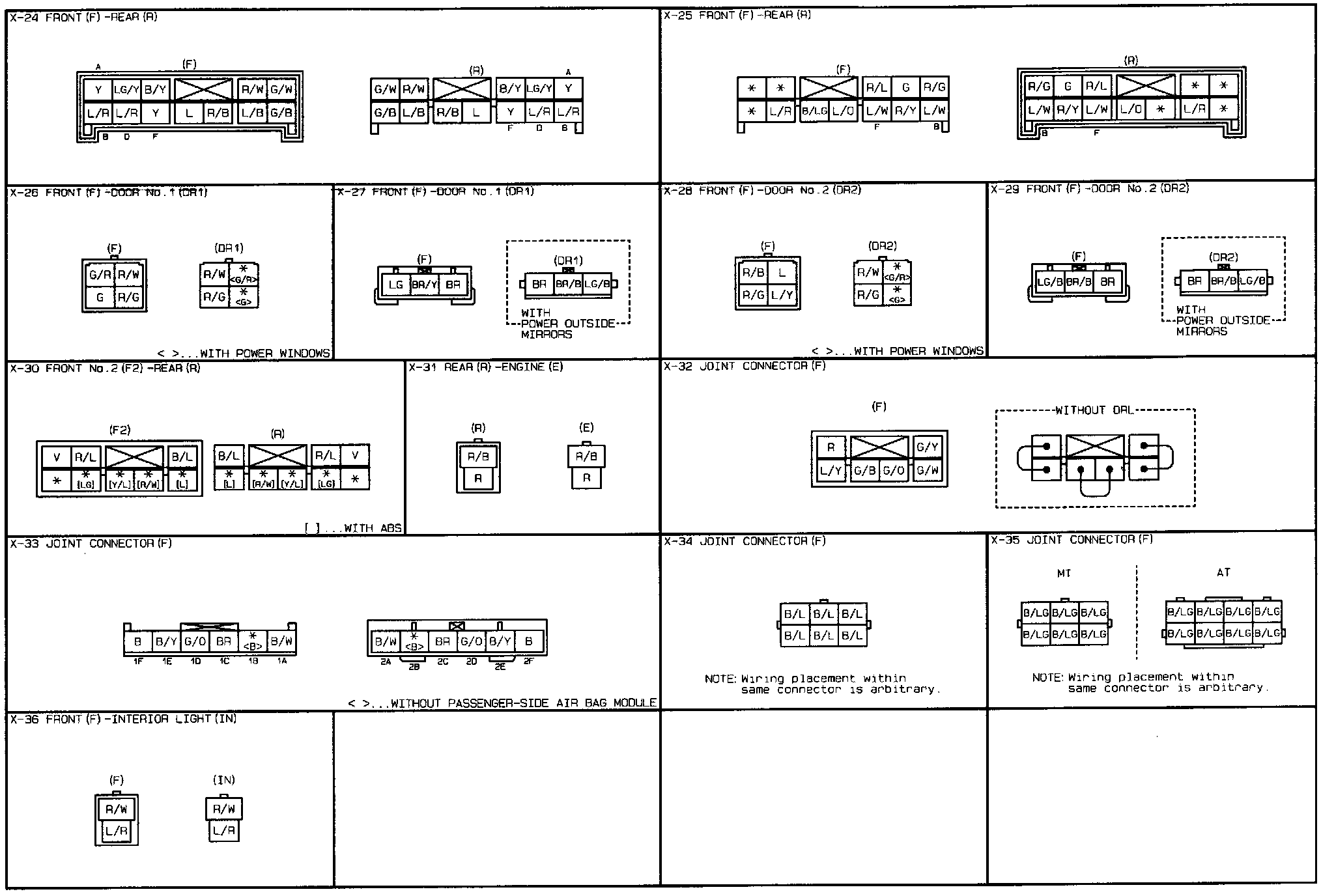

Common Connector List (X-24 To X-36):
