Valve Body, A/T

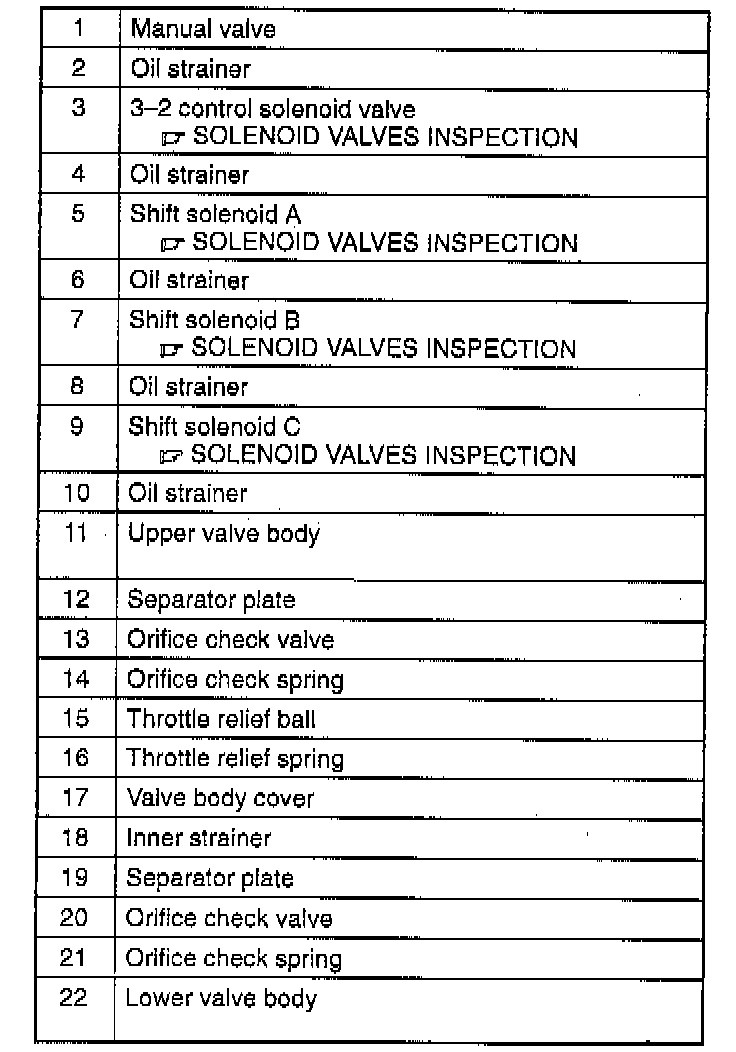

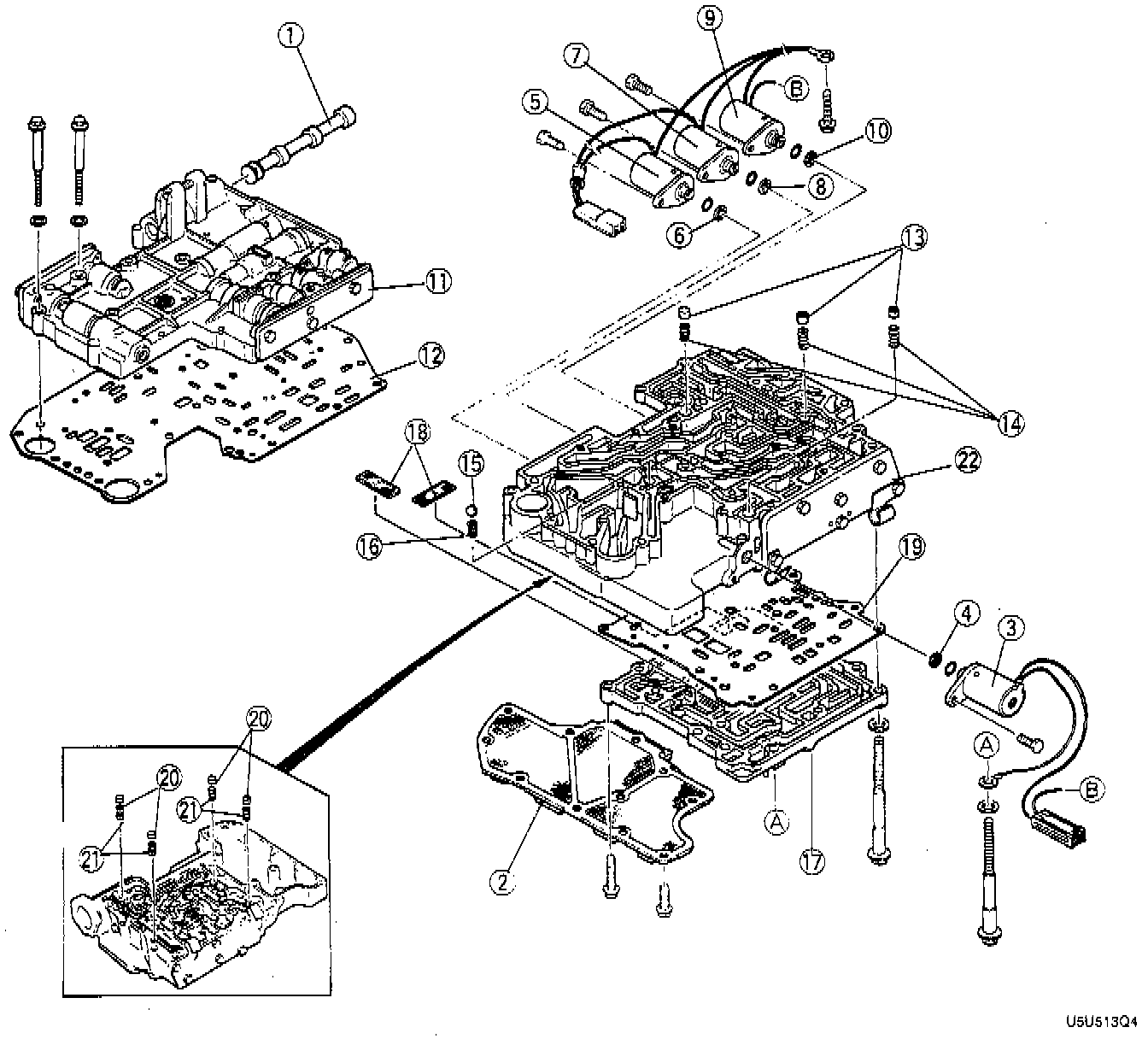

Control Valve Body Assembly Part 1 Of 2:

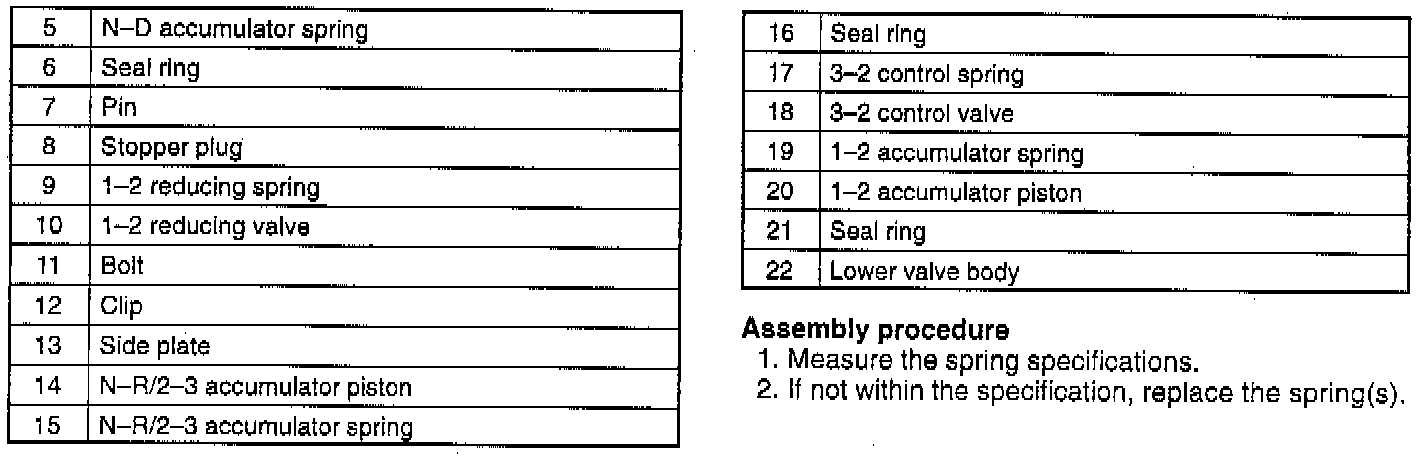

Control Valve Body Assembly Part 2 Of 2:

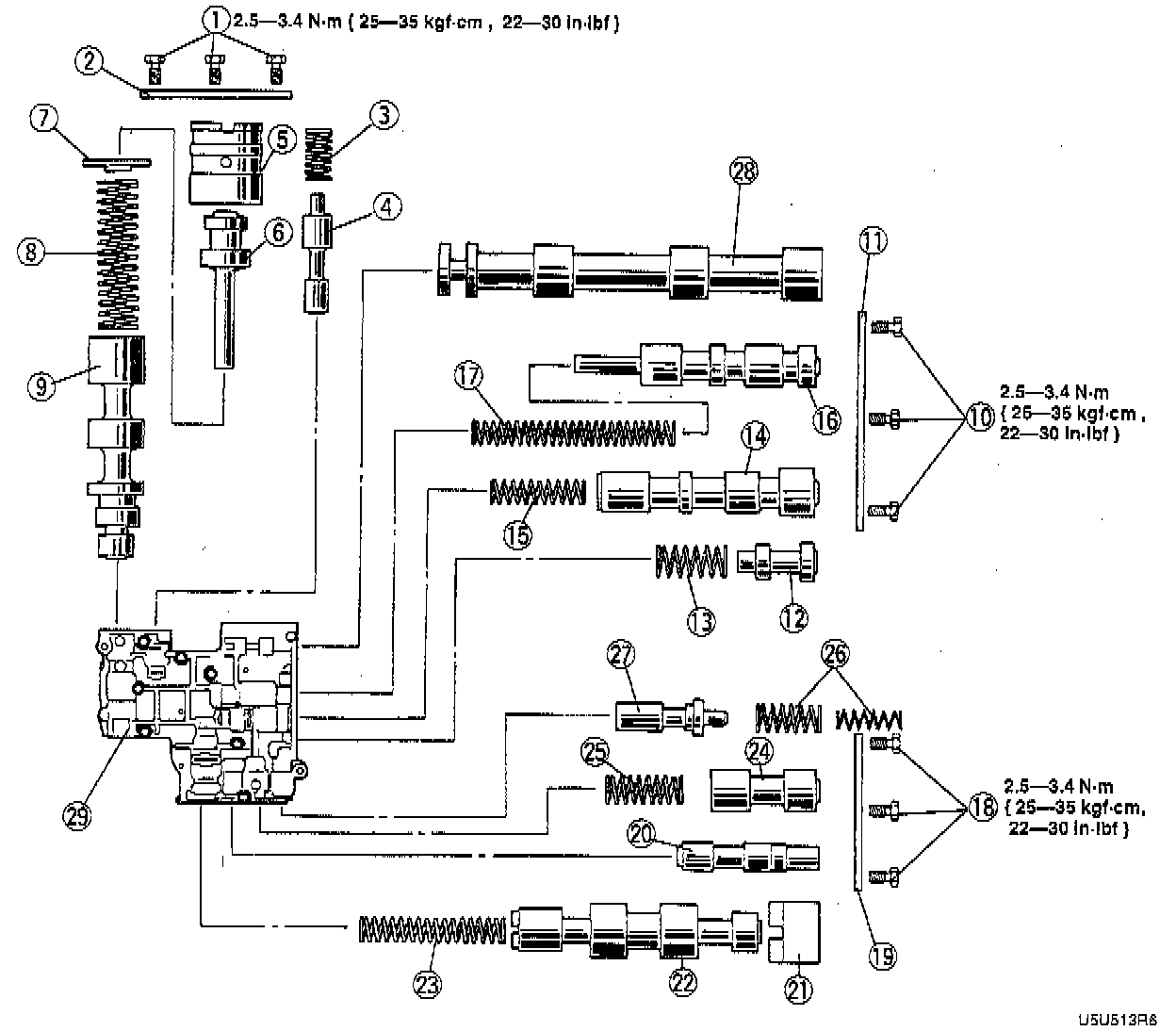

Upper Valve Body Part 1 Of 2:

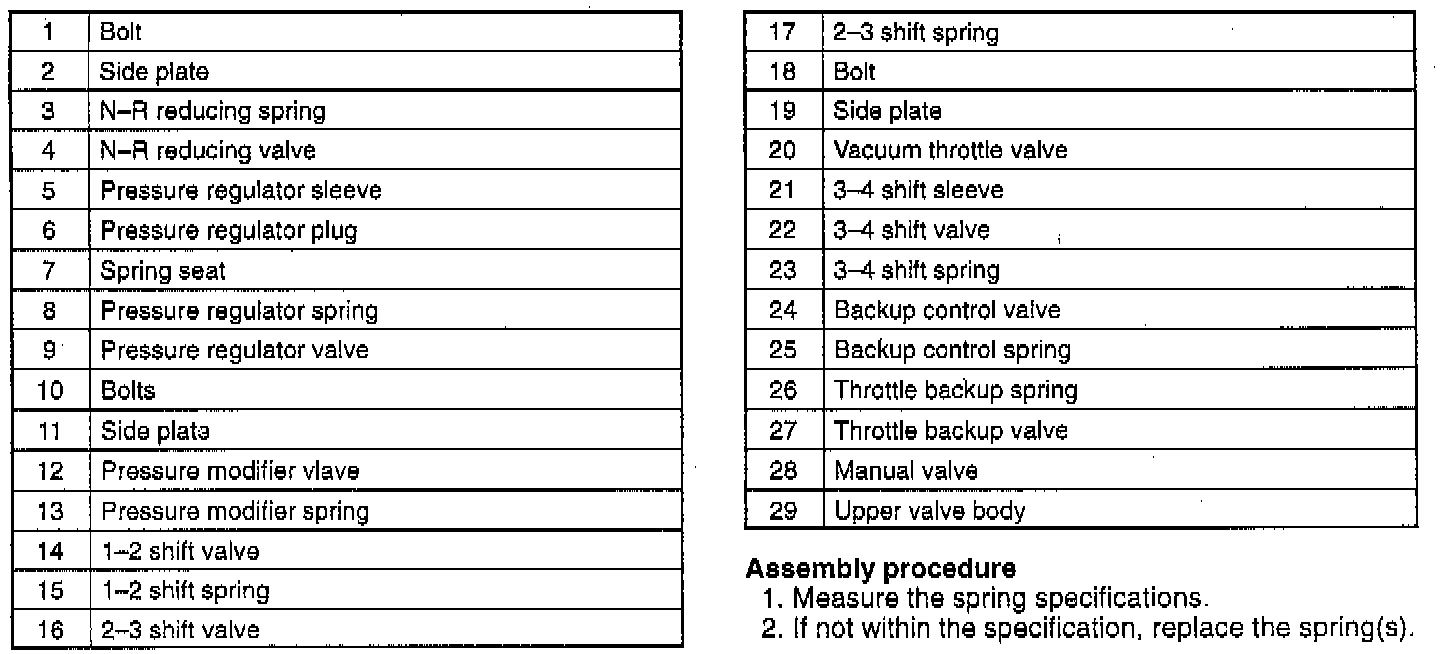

Upper Valve Body Part 2 Of 2:

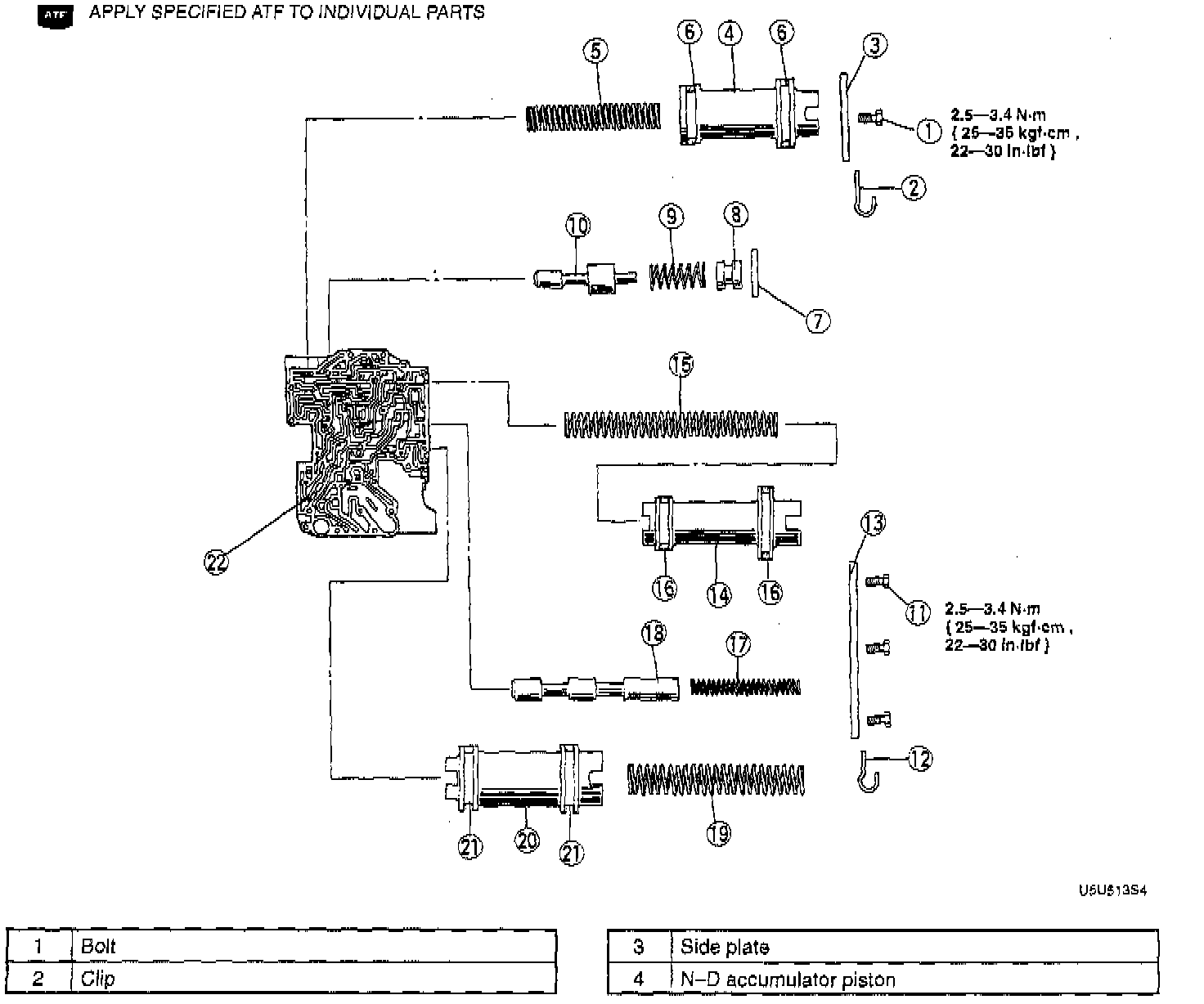

Lower Valve Body Part 1 Of 2:



Lower Valve Body Part 2 Of 2:
