Fluid - M/T: Service and Repair

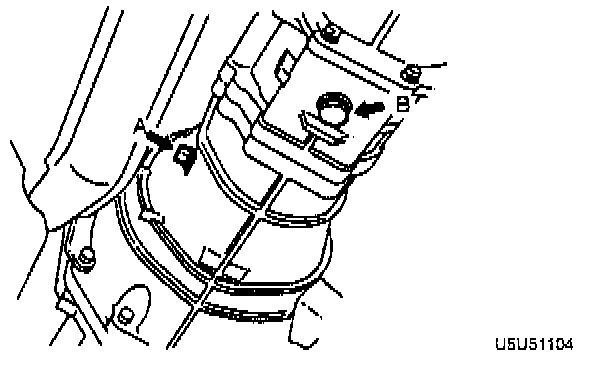

1. Remove plugs B (with washer) and A.
2. Drain the oil into a container.
3. Wipe all plugs clean.
4. Install drain plug B (with new washer). Tighten to 40 - 58 Nm (29 - 43 ft. lbs.).

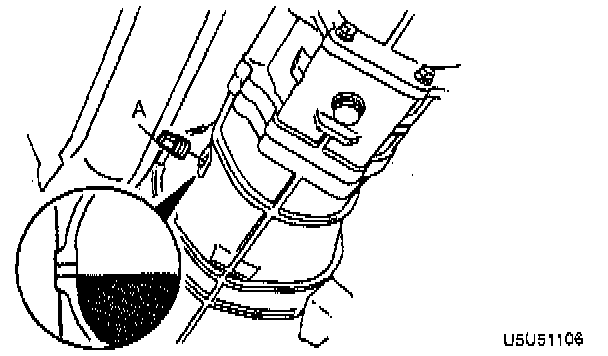

5. Add SAE 75W-90 for all season or SAE 80W-90 for temperatures above 10°C (50°F) from check plug A port until the level reaches the neck of check plug hole.

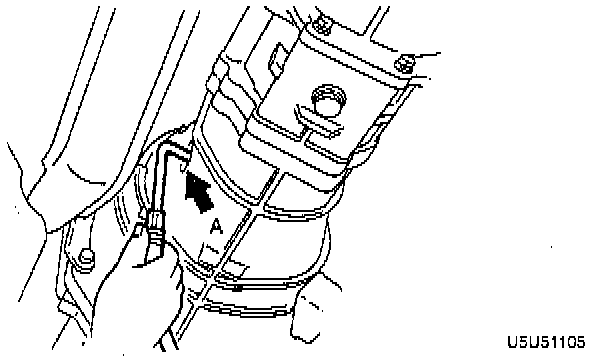

6. Apply sealant to threads of plug A.
7. Install Plug A. Tighten to 25 - 39 Nm (19 - 28 ft. lbs.).
