Rear Defogger Relay: Testing and Inspection

Reference:

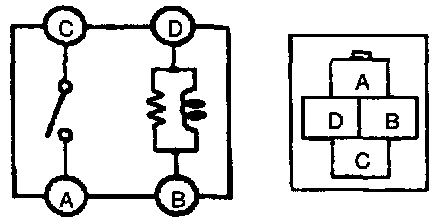

Terminal Identification:





1. Remove the rear window defroster relay.

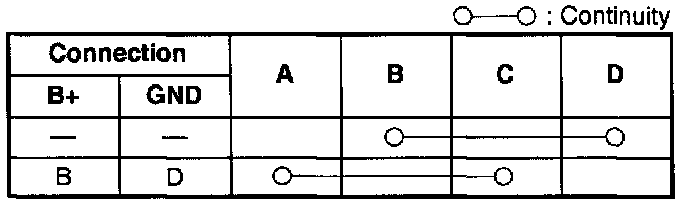

2. Check for continuity between the relay terminals by
3. If not as specified, replace the rear window defroster relay.
