Washer Fluid Level Switch: Service and Repair





1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.
3. Disconnect the washer fluid-level sensor connector.

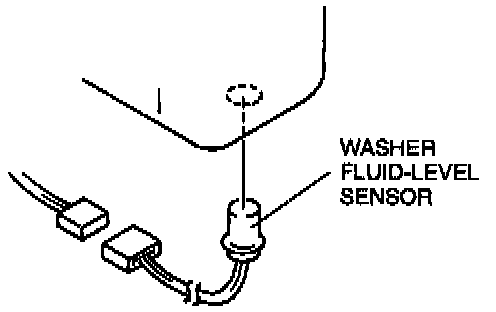

4. Remove the washer fluid-level sensor.
5. Install in the reverse order of removal.
