Description and Operation
Keyless Entry: Description and Operation
System Operation

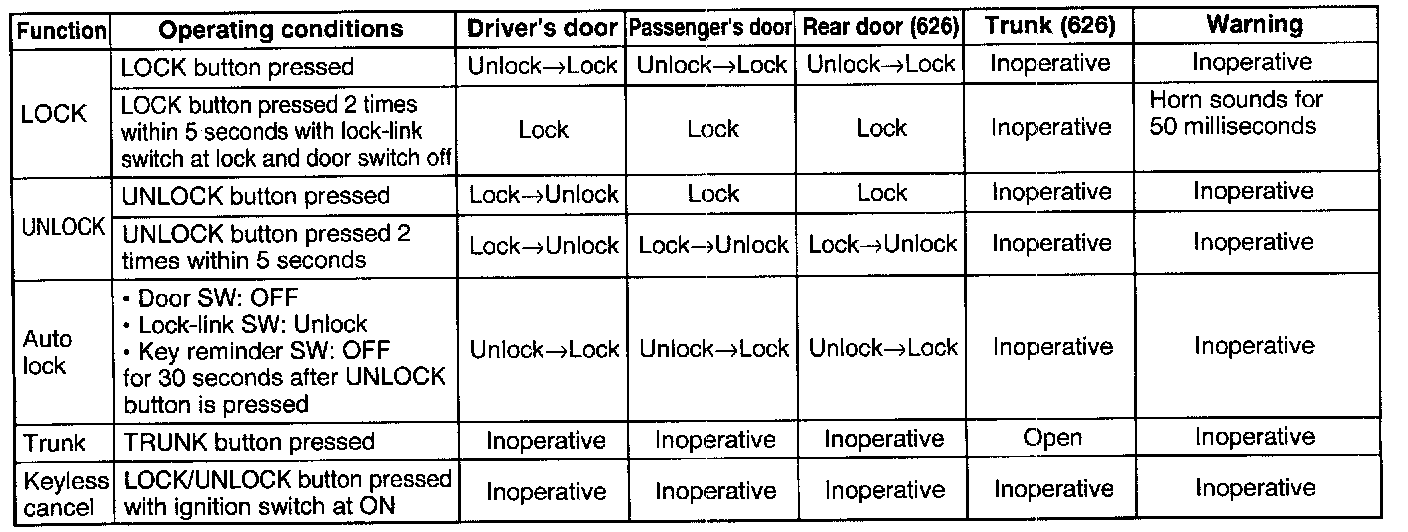

The operation of the keyless entry system is outlined in the table above. The system operates when the ignition switch is not at ON.
