Radio/Stereo
Radio/Stereo

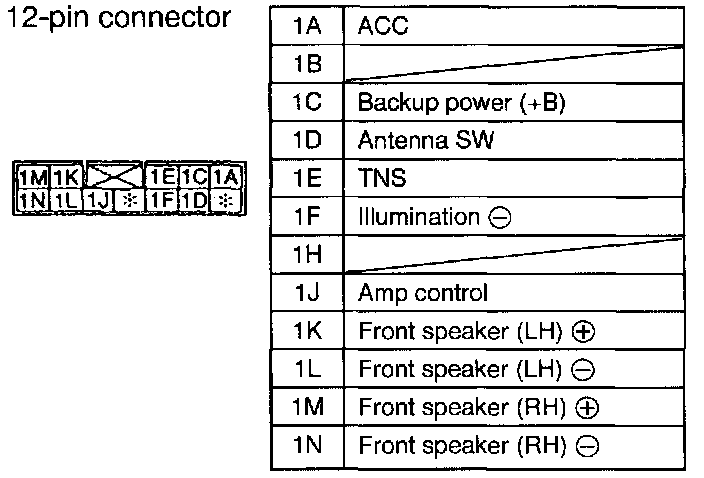

12 Pin Connector:

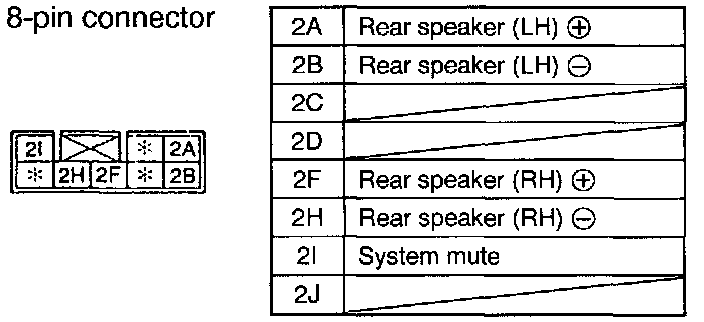

8 Pin Connector:

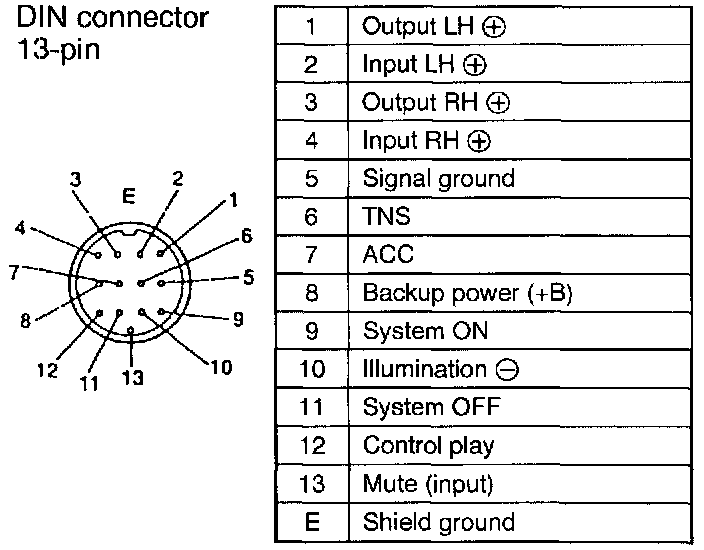

13 Pin DIN Connector:

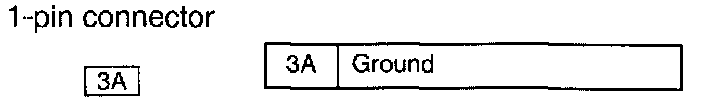

1 Pin Connector:

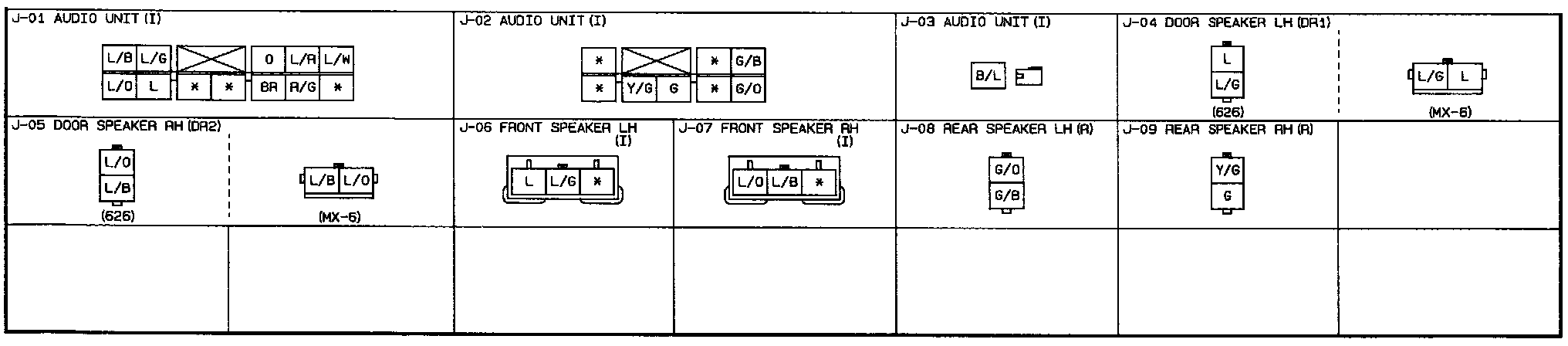

Audio System- Connectors:
CONNECTOR VIEWS
