With Automatic Transaxle

This system recirculates a small amount of exhaust gas into the intake manifold to reduce the combustion temperature and the NOx emissions.

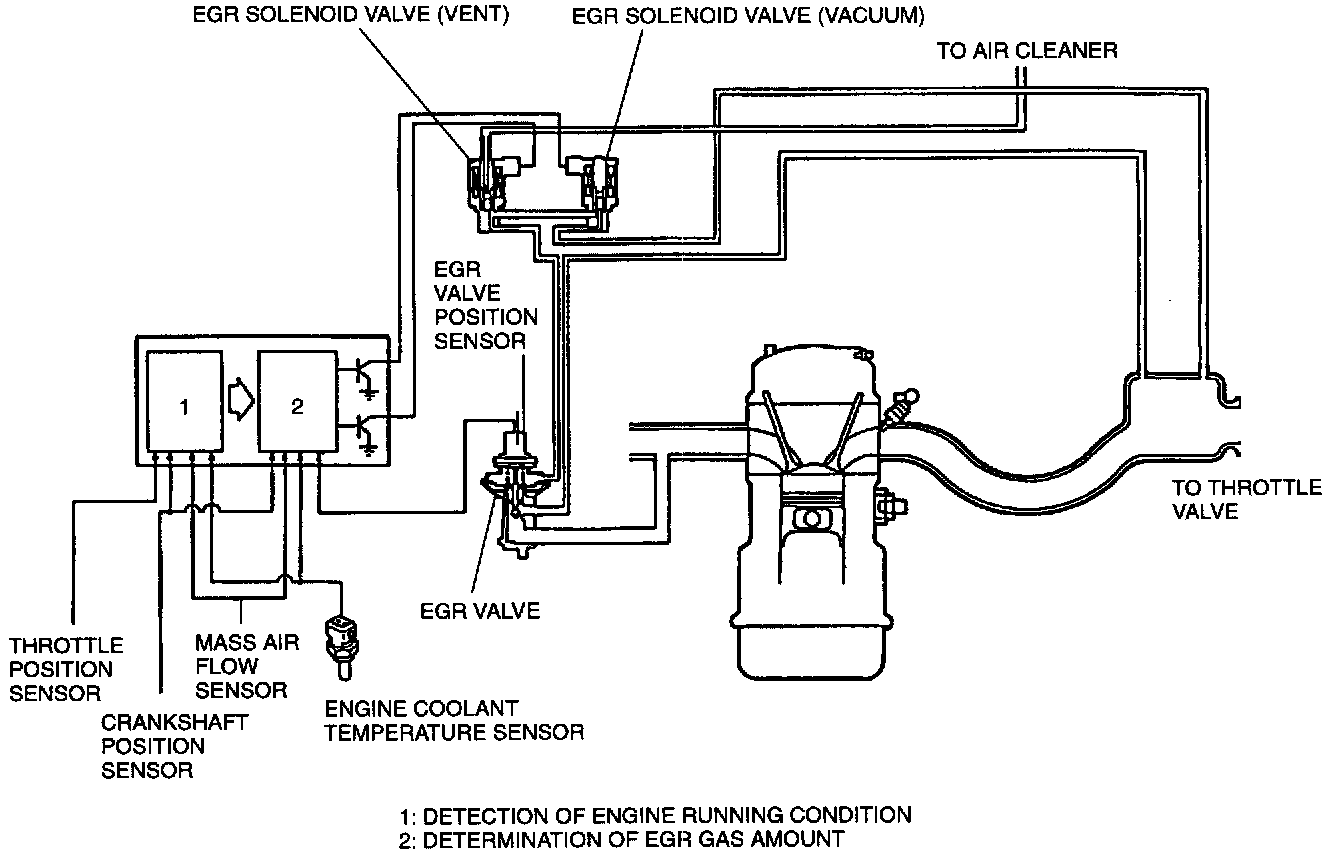

This system consists of the EGR valve, EGR valve position sensor, two duty-solenoid valves, EGR boost sensor solenoid valve, EGR boost sensor, Powertrain Control Module (PCM), and input devices.




The EGR valve position can be precisely varied depended on engine operating conditions. Spark advance can be adjusted to compensate for EGR flow.

Cold engine (coolant temperature: below 26°C (78°F)
EGR operation is stopped to improve driveablity when the engine is cold.

Function

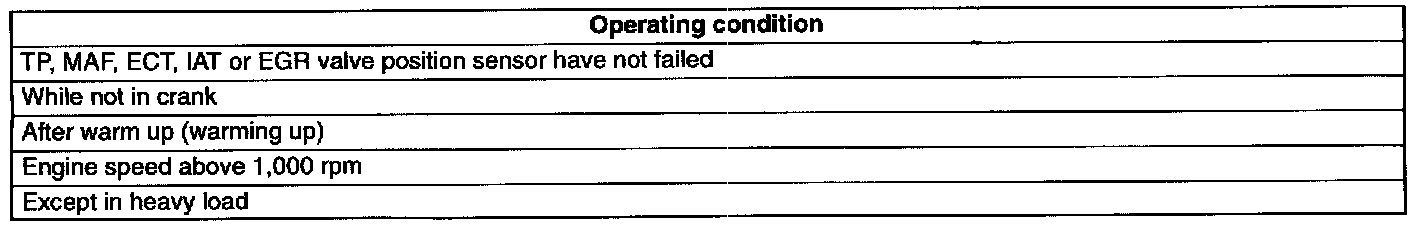

EGR operates when the follow conditions are met.
