Cruise Control Servo: Service and Repair




Removal / Installation

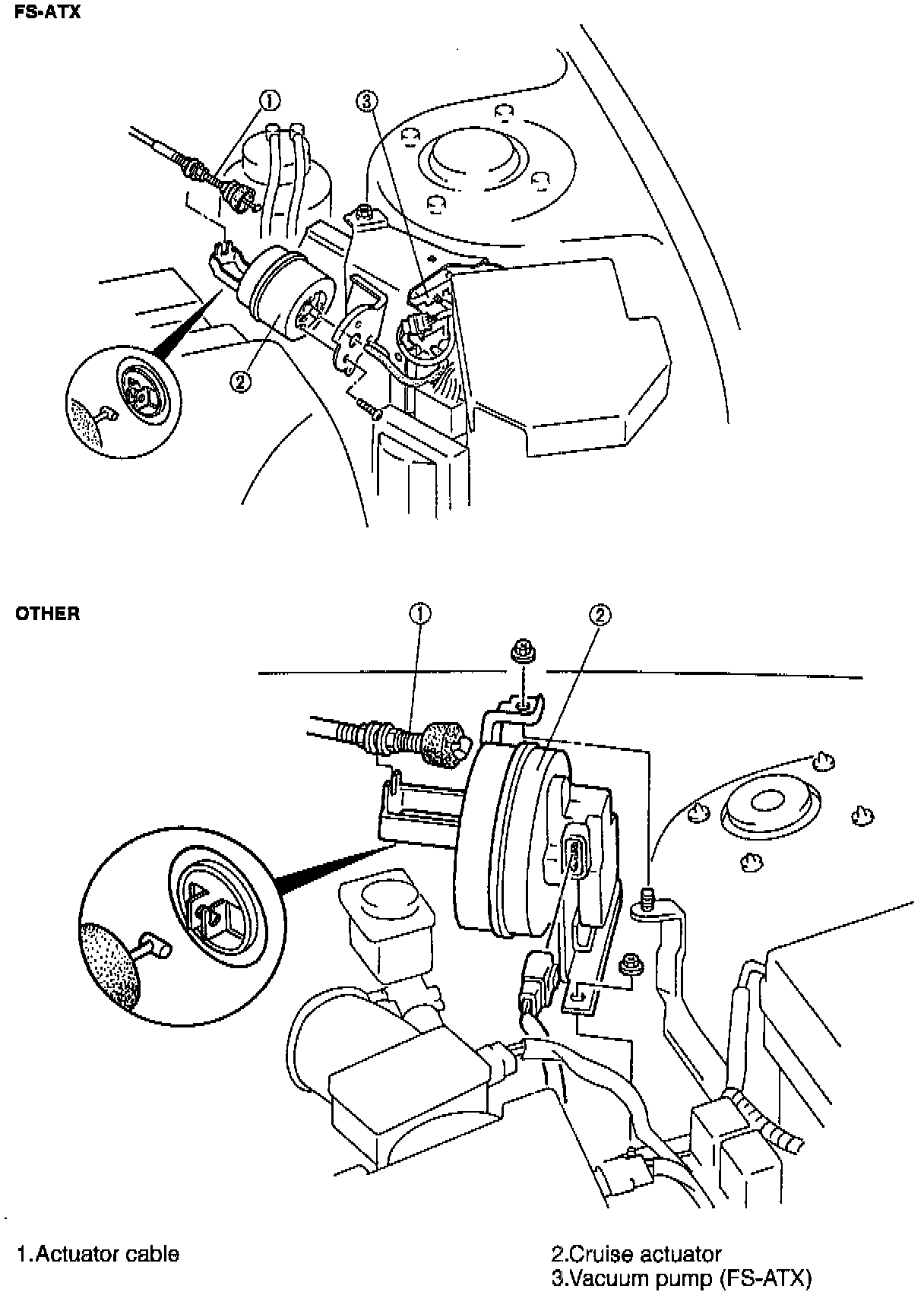

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.
